OVLBR4C7

LED Indication - Discrete Overview

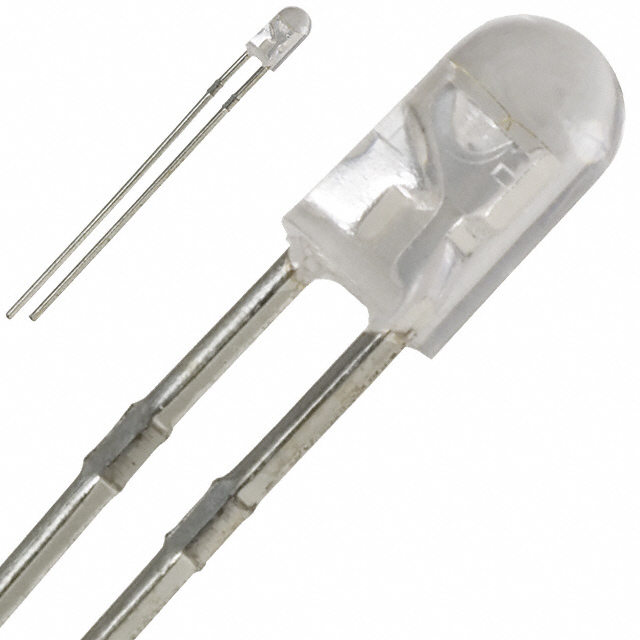

The OVLBR4C7 is a single-color red LED indicator manufactured by TT Electronics/Optek Technology. It features a 3mm T-1 radial through-hole package with a clear, round dome lens. The device emits light at a peak wavelength of 623 nm and delivers an intensity of 3700 mcd when driven at a forward current of 20 mA. Typical forward voltage is 2 V, with a maximum power rating of 100 mW. It operates within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

• Provides high-intensity red illumination suitable for visual status indication
• Features a water-clear cylindrical lens for optimal light transmission
• Designed for reliable operation in standard through-hole mounting configurations

LED Indication - Discrete Applications

• Panel-mounted equipment status indicators
• Control board signal visualization
• Consumer electronics front-panel displays

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix matches the required lens style and intensity bin. Confirm that the radial lead form factor aligns with the target PCB layout. Ensure thermal management considerations are addressed given the 100 mW power rating during continuous operation.

LED Indication - Discrete Selection Notes

Select this component when a compact 3mm red indicator is required. Compare against alternative wavelengths if color coding standards differ. Evaluate the 3700 mcd output against ambient lighting conditions to ensure adequate visibility without exceeding current limits.

LED Indication - Discrete Part Context

This part belongs to the Optek single-color LED series, which includes various colors and package sizes. It utilizes standard T-1 3/4 (3mm) housing dimensions common in industrial and consumer applications. The manufacturer provides environmental compliance documentation including RoHS status.

LED Indication - Discrete Replacement Considerations

HLMA-KH00-J0000 from Broadcom Limited is documented as a similar substitute.
