OWEMGLVANF-312.500000

Oscillators Overview

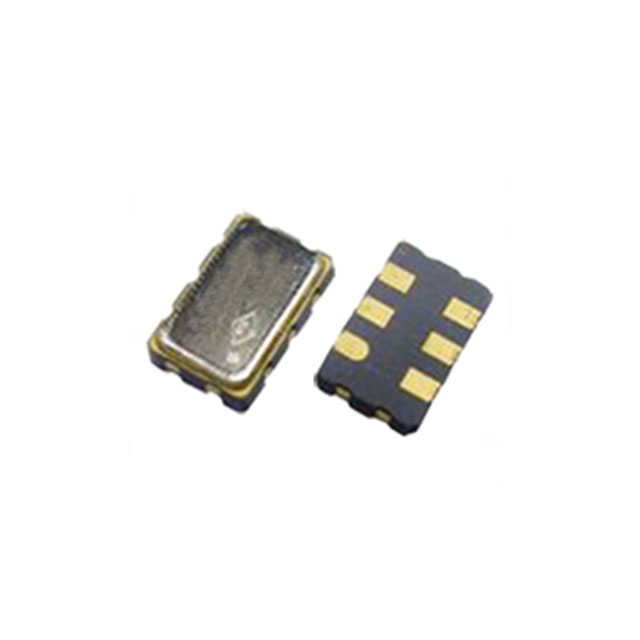

The Taitien OWEMGLVANF-312.500000 is a standard XO oscillator operating at 312.5 MHz with LVDS output. It functions on a 3.3V supply with a maximum current of 50mA and features an enable/disable control pin. The unit utilizes a 6-SMD, no lead package measuring 5.00mm x 3.20mm x 1.35mm. Frequency stability is rated at ±50ppm across an operating temperature range of -40°C to +85°C. The component is RoHS compliant and lead-free.

Oscillators Feature Summary

• LVDS differential output for high-speed signal integrity
• Integrated enable/disable functionality for power management
• Compact surface-mount design suitable for dense PCB layouts

Oscillators Applications

• High-speed data communication interfaces
• Clock distribution in networking equipment
• Test and measurement instrumentation

Oscillators Procurement Notes

Verify the specific ordering suffix matches the required frequency tolerance and load capacitance. Confirm that the LVDS output voltage levels are compatible with the receiving logic family. Ensure the thermal characteristics of the 6-SMD package align with the system's heat dissipation requirements during continuous operation.

Oscillators Selection Notes

Select this component when LVDS signaling is required for noise immunity at 312.5 MHz. Consider the ±50ppm stability requirement against system timing budgets. Evaluate the 3.3V supply constraint and 50mA current draw against available power rails. The enable pin allows for dynamic power saving in battery-operated or low-power modes.

Oscillators Part Context

This oscillator belongs to the OW-M series from Taitien, designed for general-purpose clock generation. It replaces older through-hole or larger surface-mount oscillators where space and power efficiency are critical constraints. The LVDS output distinguishes it from CMOS or TTL variants within the same frequency range.

Oscillators Replacement Considerations

Cross-reference with other Taitien OW-M series parts offering LVDS outputs. Verify pinout compatibility for direct replacement. Check if alternative manufacturers offer equivalent LVDS oscillators with identical 312.5 MHz frequency and ±50ppm stability.
