OWERDLVTNF-125.000000

Oscillators Overview

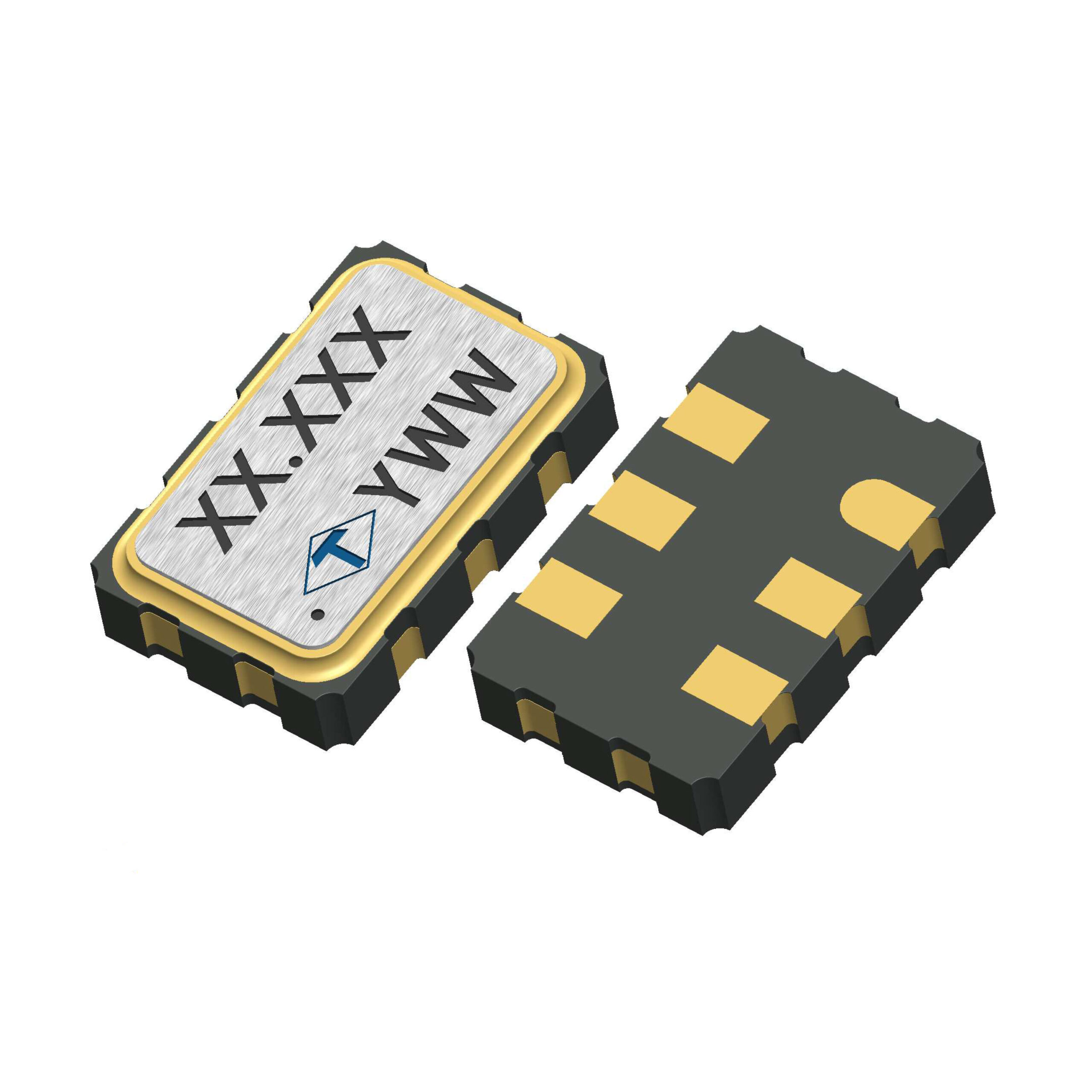

The Taitien OWERDLVTNF-125.000000 is a surface-mount crystal oscillator (XO) operating at a nominal frequency of 125 MHz. It utilizes LVDS output signaling and requires a 3.3 V supply voltage. The device features an enable/disable control function and is housed in a 6-SMD, no-lead ceramic package measuring 5.00 mm x 3.20 mm with a maximum seated height of 1.35 mm. It supports a maximum power consumption of 50 mA and operates within a temperature range of -20 °C to +70 °C.

Oscillators Feature Summary

• LVDS differential output for high-speed signal integrity
• Integrated enable/disable control functionality
• Compact ceramic surface-mount construction

Oscillators Applications

• High-speed FPGA timing reference
• Data handling systems requiring precise clock signals
• Telecommunications equipment

Oscillators Procurement Notes

Verify the specific ordering suffix to confirm output type and tolerance. Ensure the selected variant matches the required supply voltage and enable pin configuration. Confirm RoHS compliance status and packaging quantity requirements prior to order placement. Cross-reference the manufacturer's latest datasheet for any updates on mechanical dimensions or electrical specifications.

Oscillators Selection Notes

Select this component when LVDS outputs are required for noise immunity in high-frequency applications. Consider the 3.3 V supply constraint and the need for active enable control. Evaluate the 6-SMD package size against available PCB real estate. Verify that the -20 °C to +70 °C operating range meets the environmental conditions of the target application.

Oscillators Part Context

This part belongs to Taitien's line of standard crystal oscillators designed for digital circuit timing. It complements other XO variants offering different output standards like CMOS or LVPECL. The series provides reliable frequency generation for modern electronic systems requiring stable clock sources.

Oscillators Replacement Considerations

Direct substitutes must match the 125 MHz frequency, LVDS output, 3.3 V supply, and 6-SMD package. Verify equivalent electrical parameters such as phase noise and jitter before substitution.
