OWEWDLLTYF-100.000000

Oscillators Overview

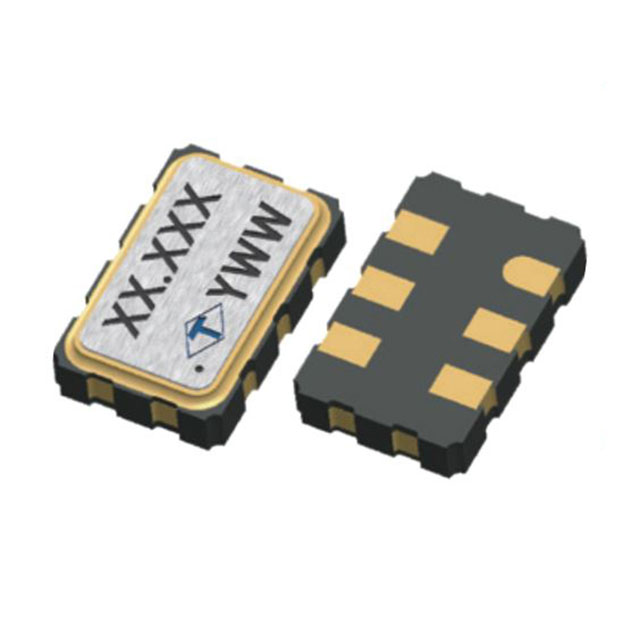

The Taitien OWEWDLLTYF-100.000000 is a standard crystal oscillator (XO) operating at a frequency of 100 MHz. It utilizes an LVPECL output interface and functions with a 3.3V supply voltage. The device features enable/disable control capabilities for power management. It is housed in a compact SMD5032-6P package, designed for surface-mount applications. The component is part of the OW-U series and uses a crystal as its base resonator. This oscillator is currently active and RoHS compliant, suitable for timing applications requiring precise frequency stability.

Oscillators Feature Summary

• LVPECL output interface for high-speed signal integrity
• Enable/disable control functionality for power optimization
• Compact surface-mount packaging for space-constrained designs

Oscillators Applications

• High-speed data handling systems
• FPGA timing reference sources
• Communication equipment clocking

Oscillators Procurement Notes

Verify the exact ordering suffix to ensure correct output type and tolerance specifications. Confirm that the SMD5032-6P package matches your PCB footprint requirements. Check for RoHS compliance documentation if required by your manufacturing standards. Ensure the 3.3V supply voltage aligns with your system design before procurement.

Oscillators Selection Notes

Select this component when LVPECL outputs are required for differential signaling applications. Consider the 100 MHz frequency requirement and the need for enable/disable control. Evaluate the SMD5032-6P package size against available board space. Verify compatibility with 3.3V logic levels in the target circuit design.

Oscillators Part Context

This oscillator belongs to Taitien's OW-U series of quartz frequency control products. Taitien specializes in providing comprehensive timing solutions including crystals, oscillators, and atomic clocks. The company supports various industries requiring precise frequency control and stable timing references.

Oscillators Replacement Considerations

Check for direct substitutes within the OW-U series offering identical LVPECL outputs and 100 MHz frequency. Verify pinout compatibility for the SMD5032-6P package when considering alternative manufacturers.
