OWICM5025RF-102

Common Mode Chokes Overview

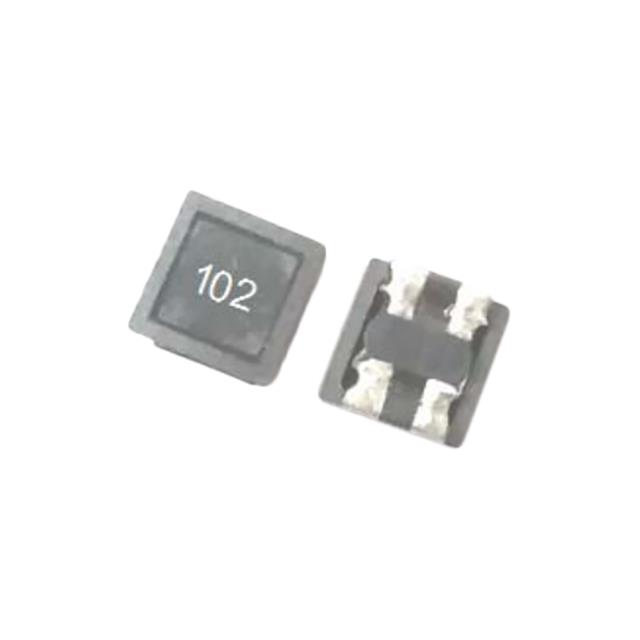

The OWICM5025RF-102 is a two-line common mode choke from Ole Wolff Electronics Inc, designed for surface mount applications. It provides an impedance of 1 kOhms at 100 MHz and supports a current rating of 2A. The component features a ferrite toroid core construction that is magnetically shielded to suppress common mode noise without affecting signal integrity. It operates within a temperature range of -40°C to +125°C and meets RoHS3 standards.

Common Mode Chokes Feature Summary

• Ferrite toroid core construction with magnetic shielding
• Enables common mode noise suppression without influencing signals
• Surface mount design for compact integration

Common Mode Chokes Applications

• Consumer electronics signal line filtering
• Medical device power and signal protection
• Industrial system EMI suppression

Common Mode Chokes Procurement Notes

Verify the specific suffix (e.g., -102) against the datasheet to confirm impedance and current ratings, as variations exist within the series. Confirm RoHS3 compliance status and tape & reel packaging requirements during ordering. Ensure storage humidity conditions are maintained prior to assembly to preserve component integrity.

Common Mode Chokes Selection Notes

Select this component when magnetic shielding is required to prevent interference with adjacent circuits. The 2A current rating suits moderate power applications. Verify the 1 kOhm impedance at 100 MHz aligns with the target noise frequency spectrum. Ensure the surface mount footprint fits the PCB layout constraints.

Common Mode Chokes Part Context

This part belongs to the OWICM5025RF series of common mode chokes manufactured by Ole Wolff Electronics Inc. The series includes variants with different impedance values, such as the OWICM5025RF-142 and OWICM5025RF-501. These components are engineered for acoustic and magnetic solutions in electronic systems.

Common Mode Chokes Replacement Considerations

Direct substitutes require matching 1 kOhm @ 100 MHz impedance and 2A current rating. Verify package dimensions and pin configuration compatibility. Check if alternative manufacturers offer equivalent magnetic shielding and operating temperature ranges.
