OWINR8040-220

$0.31

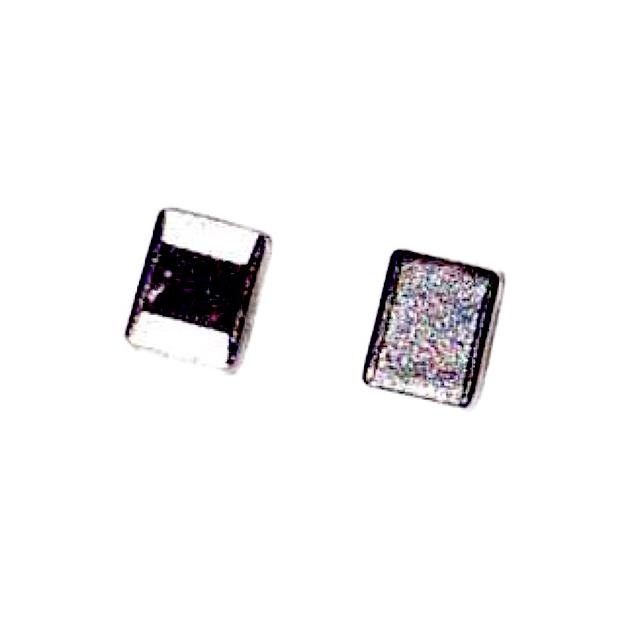

Description：FIXED IND 22UH 2.8A 84 MOHM SMD
Series：-
Mfr：Ole Wolff Electronics Inc
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:fd25f4f6e4b6 Category: Fixed Inductors Brand: Ole Wolff Electronics Inc

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

OWINR8040-220 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Ole Wolff Electronics Inc. Its product description is FIXED IND 22UH 2.8A 84 MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for OWINR8040-220

Description：FIXED IND 22UH 2.8A 84 MOHM SMD
Series：-
Mfr：Ole Wolff Electronics Inc
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Molded
Material - Core：Ferrite
Inductance：22 µH
Tolerance：-
Current Rating (Amps)：2.1 A
Current - Saturation (Isat)：2.4A
Shielding：Semi-Shielded
DC Resistance (DCR)：90mOhm
Q @ Freq：-
Frequency - Self Resonant：9.5MHz
Ratings：-
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：-
Mounting Type：Surface Mount
Package / Case：3131 (8080 Metric)
Supplier Device Package：3131
Size / Dimension：0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max)：0.165" (4.20mm)
Features：-

Fixed Inductors datasheet and documents for OWINR8040-220

OWINR8040-220

Fixed Inductors Overview

The OWINR8040-220 is a fixed inductor manufactured by Ole Wolff Electronics Inc. It features a semi-shielded molded construction with an inductance of 22 µH and a maximum DC current rating of 2.1 A. The component exhibits a maximum DC resistance of 90 mOhm and utilizes a 3131 (8080 Metric) surface mount package.

Fixed Inductors Feature Summary

Semi-shielded magnetic resin construction designed to reduce buzz noise to ultra-low levels
Compliant with RoHS, Halogen Free, and REACH standards

Fixed Inductors Applications

Consumer electronics power circuits
Medical device power management
Industrial system filtering

Fixed Inductors Procurement Notes

Verify the specific manufacturer datasheet for complete electrical characteristics and mechanical drawings before integration. Confirm that the component meets all required environmental compliance standards for the target application region. Ensure that the selected package dimensions align with the printed circuit board layout constraints. Validate that the current ratings meet the operational requirements of the design.

Fixed Inductors Selection Notes

Select this component when low electromagnetic interference and reduced acoustic noise are critical design requirements. The semi-shielded design offers a balance between performance and cost for space-constrained applications. Consider the 2.1 A current rating and 90 mOhm resistance for efficiency calculations in power supply designs requiring compact form factors.

Fixed Inductors Part Context

This inductor belongs to Ole Wolff Electronics Inc's portfolio of magnetic components used across consumer electronics, medical devices, and industrial systems. The manufacturer provides extensive research and development support for these acoustic and magnetic solutions, ensuring compatibility with various market segment requirements.
