OXEIDLJANF-0.032768

Oscillators Overview

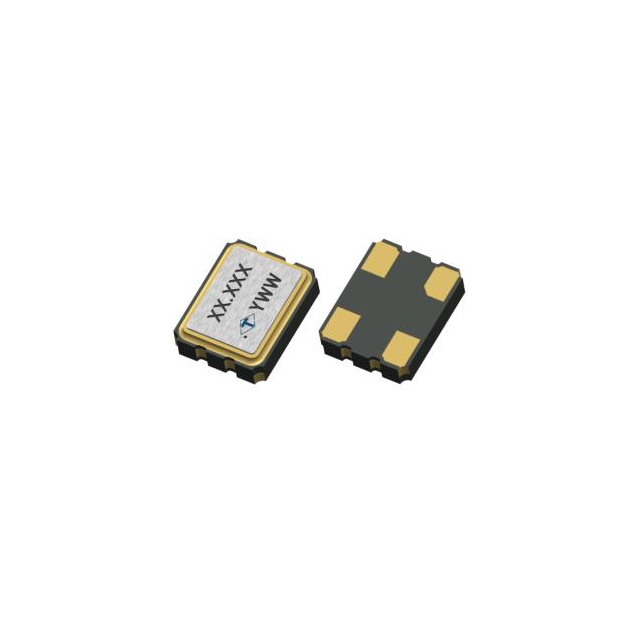

OXEIDLJANF-0.032768 is a standard crystal oscillator manufactured by Taitien, designed for precise timing applications. It operates at a nominal frequency of 32.768 kHz and utilizes CMOS output logic. The device supports an enable/disable function to manage power consumption effectively. It is powered by a supply voltage ranging from 2.8V to 3.3V. The component is housed in a compact 4-SMD, no lead package suitable for surface mount assembly. It complies with RoHS standards and is lead-free.

Oscillators Feature Summary

• CMOS output logic for digital interface compatibility
• Integrated enable and disable control function
• RoHS compliant and lead-free construction

Oscillators Applications

• Real-time clock (RTC) circuits
• Wearable electronic devices
• Low-power consumer electronics

Oscillators Procurement Notes

Verify the specific supply voltage range against the latest official datasheet, as sources indicate variations between 2.8V and 3.3V. Confirm the package type is indeed 4-SMD, no lead. Ensure compliance requirements match project specifications. Check current availability status as some distributors list this part as obsolete or discontinued.

Oscillators Selection Notes

Select this component when a low-frequency, low-power clock source is required for timekeeping functions. The enable/disable feature makes it suitable for battery-operated systems where power management is critical. Ensure the host circuit supports CMOS input thresholds and the physical footprint matches the 4-SMD no lead package dimensions.

Oscillators Part Context

This oscillator belongs to Taitien's XO series, which provides standard crystal oscillators for various timing needs. Taitien is a recognized manufacturer of frequency control products, including crystals, VCXOs, and TCXOs. The company maintains manufacturing facilities in Taiwan, the US, and China, serving global markets in telecommunications and consumer electronics.

Oscillators Replacement Considerations

OYEIDLJANF-0.032768 is listed as a potential alternative part number for this component.
