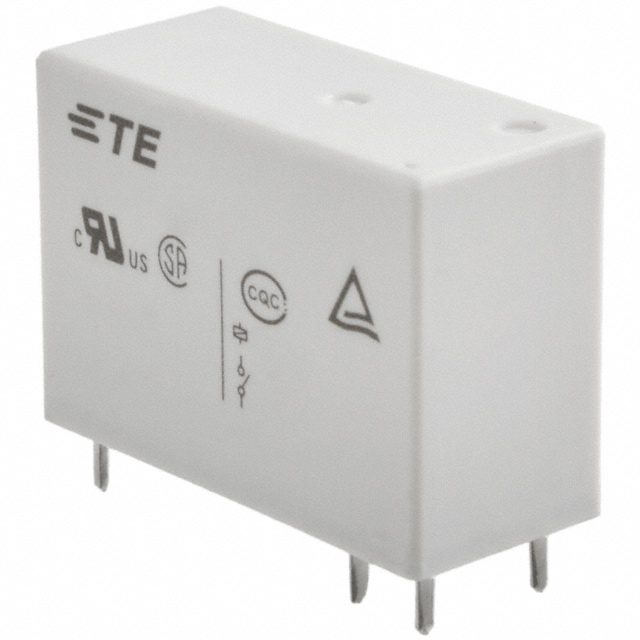

Power Relays, Over 2 Amps OZ-SS-103LM1,200 product image

OZ-SS-103LM1,200

Description：RELAY GEN PURPOSE SPST 16A 3V
Series：OZ, OEG
Mfr：TE Connectivity Potter & Brumfield Relays
Package：Tube

SKU:5b4f102eec8e Category: Power Relays, Over 2 Amps Brand: TE Connectivity Potter & Brumfield Relays

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

OZ-SS-103LM1,200 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE SPST 16A 3V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for OZ-SS-103LM1,200

Description：RELAY GEN PURPOSE SPST 16A 3V
Series：OZ, OEG
Mfr：TE Connectivity Potter & Brumfield Relays
Package：Tube
Mounting Type：Through Hole
Coil Voltage：3VDC
Contact Form：SPST-NO (1 Form A)
Contact Rating (Current)：16 A
Switching Voltage：240VAC, 24VDC - Max
Load - Max Switching：3840VA, 380W
Coil Current：176 mA
Coil Type：Non Latching
Features：-
Termination Style：PC Pin
Seal Rating：Sealed - Flux Protection
Coil Insulation：Class A
Must Operate Voltage：2.25 VDC
Must Release Voltage：0.15 VDC
Operating Temperature：-30°C ~ 70°C
Contact Material：Silver Tin Oxide (AgSnO)
Approval Agency：CQC, CSA, TUV, UR
Relay Type：General Purpose
Grade：-
Qualification：-
Operate Time：20 ms
Release Time：8 ms
