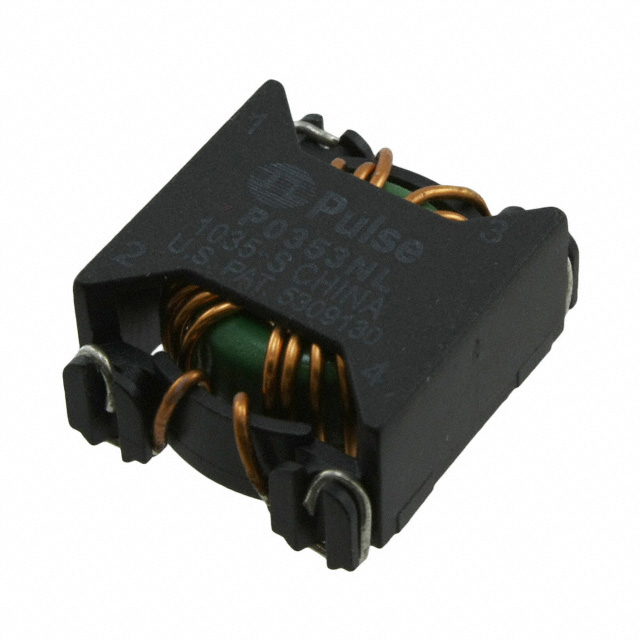

P0353 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 5.6A 2LN SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for P0353
- Description：CMC 5.6A 2LN SMD
- Series：-
- Mfr：Pulse Electronics
- Package：Tube
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：5.6A
- DC Resistance (DCR) (Max)：21mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.770" L x 0.670" W (19.56mm x 17.02mm)
- Height (Max)：0.390" (9.91mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for P0353
Common Mode Chokes Overview
The P0353 is a surface-mount common mode choke manufactured by Pulse Electronics. It features an inductance of 590 uH with a tolerance of 35%. The component supports a maximum DC current of 5.6 A and operates within a width dimension of 12.7 mm. Designed for SMT applications, it functions as a single-channel choke suitable for filtering electromagnetic interference in power circuits.
Common Mode Chokes Feature Summary
- Surface mount construction for automated PCB assembly
- High current handling capability up to 5.6 A
- Common mode noise suppression functionality
Common Mode Chokes Applications
- Power supply input filtering
- DC-DC converter circuit protection
- Electromagnetic interference suppression in industrial equipment
Common Mode Chokes Procurement Notes
Verify the specific datasheet revision and electrical tolerances before integration. Confirm that the 5.6 A current rating aligns with your system's peak load requirements. Ensure the surface mount footprint matches your board layout constraints. Check for any RoHS compliance documentation if required by your manufacturing standards.
Common Mode Chokes Selection Notes
Select this component when high current capacity is required in a compact surface mount package. The 590 uH inductance provides effective filtering for low-frequency noise. Consider the physical dimensions and thermal characteristics during the design phase to ensure adequate clearance and heat dissipation on the printed circuit board.
Common Mode Chokes Part Context
This part belongs to Pulse Electronics' lineup of passive components designed for power management applications. Common mode chokes are essential for maintaining signal integrity and reducing conducted emissions in electronic systems. The product line emphasizes reliability and performance in demanding industrial and commercial environments.
Common Mode Chokes Replacement Considerations
Consult official distributor catalogs for verified substitute part numbers from Pulse Electronics or other manufacturers. Ensure replacement components match the 590 uH inductance, 5.6 A current rating, and surface mount form factor.
