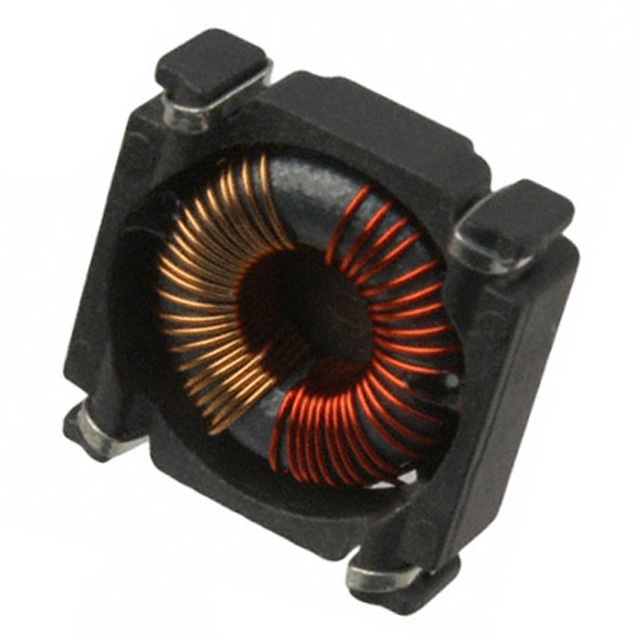

P0354NLT is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 1.22A 2LN SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for P0354NLT
- Description：CMC 1.22A 2LN SMD
- Series：-
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：1.22A
- DC Resistance (DCR) (Max)：200mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
- Height (Max)：0.215" (5.46mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for P0354NLT
Common Mode Chokes Overview
The P0354NLT is a surface-mount common mode choke manufactured by Pulse Electronics. It features an inductance of 1.17 mH and a rated current of 1.22 A. The component has a DC resistance of 200 milliohms and physical dimensions of 12.7 mm x 12.7 mm x 5.46 mm. It provides a dielectric strength of 1000 Vrms.
Common Mode Chokes Feature Summary
- Surface mount construction for automated assembly
- Common mode noise filtering capability
- High dielectric strength insulation
Common Mode Chokes Applications
- DC/DC converter circuits
- Power line filtering
- EMI suppression in electronic equipment
Common Mode Chokes Procurement Notes
Verify the manufacturer part number P0354NLT against official Pulse Electronics documentation to confirm specifications. Ensure compatibility with required current ratings and impedance characteristics for the specific application environment before procurement.
Common Mode Chokes Selection Notes
Select this component based on its 1.17 mH inductance and 1.22 A current rating. Consider the 12.7 mm square footprint and 5.46 mm height for board space constraints. Verify that the 200 milliohm DC resistance meets power loss requirements.
Common Mode Chokes Part Context
This component belongs to the class of surface-mount common mode chokes designed for power line applications. It serves as an electromagnetic interference filter, distinguishing itself from standard inductors by its dual-winding configuration for common mode signal rejection.
Common Mode Chokes Replacement Considerations
Consult official distributor databases for verified substitute part numbers from Pulse Electronics or other manufacturers that match the 1.17 mH inductance, 1.22 A rating, and compatible package dimensions.
