P0420NLT

Common Mode Chokes Overview

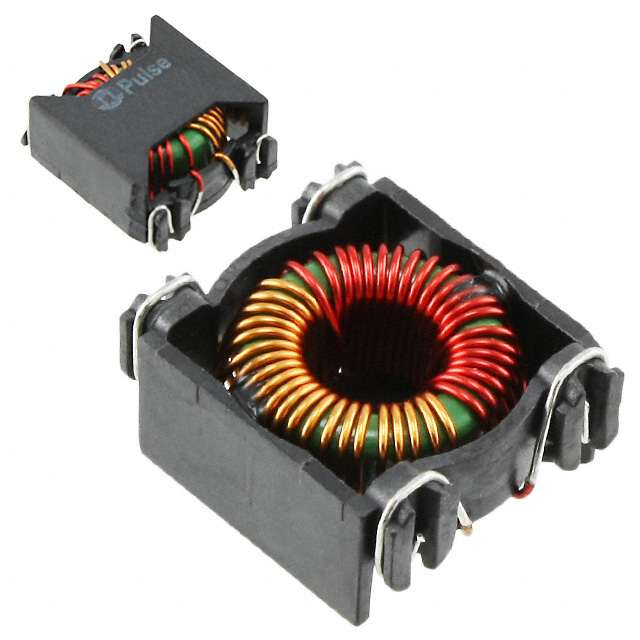

The P0420NLT is a surface-mount common mode choke manufactured by Pulse Electronics. It features a single-channel design with an inductance of 1320 uH and a maximum DC resistance of 60 mOhms. The component supports a maximum DC current of 3.3 A and operates within a temperature range of -40°C to +120°C. Its physical dimensions are 19.56 mm in length, 17.02 mm in width, and 9.91 mm in height, housed in an LCCI-50 package.

Common Mode Chokes Feature Summary

• Provides common mode noise filtering for high-speed data lines
• Designed for compact surface-mount PCB integration
• Utilizes a toroidal core structure for efficient magnetic performance

Common Mode Chokes Applications

• High-speed serial data interface protection
• Ethernet network line filtering
• USB port signal integrity enhancement

Common Mode Chokes Procurement Notes

Verify the specific manufacturer part number against official Pulse Electronics documentation to ensure authenticity. Confirm that the received components match the specified electrical parameters, including inductance and DC resistance values. Check for any manufacturing changes or obsolescence notices prior to final procurement decisions.

Common Mode Chokes Selection Notes

Select this component when a single-channel SMD common mode choke is required for space-constrained designs. Ensure the application current does not exceed the 3.3 A rating and verify compatibility with the target operating temperature range. Consider the LCCI-50 footprint requirements during PCB layout planning.

Common Mode Chokes Part Context

This component belongs to the P0XXX SMT Toroid Common Mode Choke Series from Pulse Electronics. It is categorized under common mode chokes and filters, specifically designed for surface-mount technology applications requiring reliable noise suppression in compact electronic assemblies.

Common Mode Chokes Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
