P0502NL

Common Mode Chokes Overview

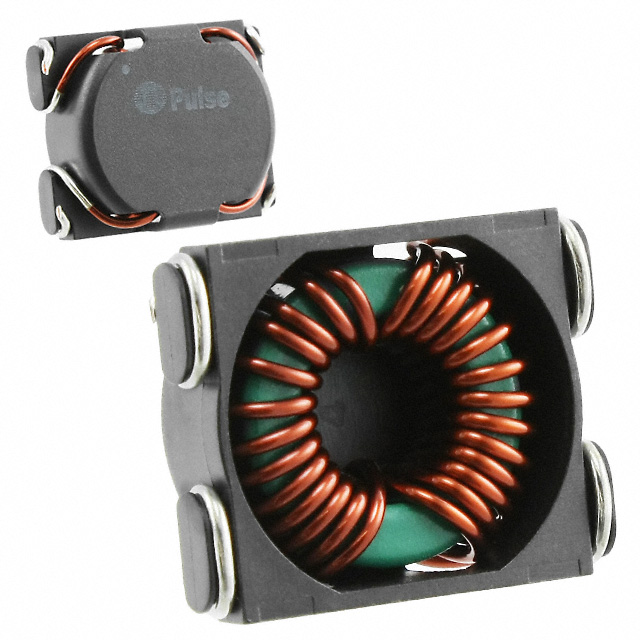

The P0502NL is a surface-mount common mode choke manufactured by Pulse Electronics. It features an inductance of 470 µH and a maximum DC resistance of 0.008 ohms. The component supports a current rating of 14 A and provides a common mode impedance of 3.75 kΩ. Its physical dimensions are 31 mm in length, 25.4 mm in width, and 12.7 mm in height.

Common Mode Chokes Feature Summary

• Surface mount construction for automated assembly
• High current handling capability up to 14 A
• Low DC resistance for minimal power loss

Common Mode Chokes Applications

• Power line filtering
• EMI suppression in electronic circuits
• Common mode noise reduction

Common Mode Chokes Procurement Notes

Verify the specific suffix (e.g., NLT vs NL) against official datasheets to confirm packaging type and reel specifications. Confirm RoHS compliance status with the manufacturer prior to ordering. Ensure the selected variant matches the required current and inductance parameters for the target application design.

Common Mode Chokes Selection Notes

Select this component when high current capacity and low series resistance are critical for power integrity. Evaluate the physical footprint constraints against the 31 mm x 25.4 mm x 12.7 mm dimensions. Consider thermal management requirements given the 14 A current rating during operation.

Common Mode Chokes Part Context

This part belongs to the SMT Common Mode Chokes category from Pulse Electronics. It is designed for applications requiring robust noise suppression in power lines. The product line emphasizes reliability and performance in compact surface-mount formats.

Common Mode Chokes Replacement Considerations

Consult official substitution guides for equivalent components. Verify that any replacement matches the 470 µH inductance, 14 A current rating, and 0.008 Ω DCR specifications.
