P0527NL

$3.35

Description：CMC 7.2A 2LN SMD
Series：-
Mfr：Pulse Electronics
Package：Tube

SKU:e9259b103d0d Category: Common Mode Chokes Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

P0527NL is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 7.2A 2LN SMD. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for P0527NL

Description：CMC 7.2A 2LN SMD
Series：-
Mfr：Pulse Electronics
Package：Tube
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：7.2A
DC Resistance (DCR) (Max)：15mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：1.110" L x 1.000" W (28.19mm x 25.40mm)
Height (Max)：0.395" (10.04mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for P0527NL

P0527NL

Common Mode Chokes Overview

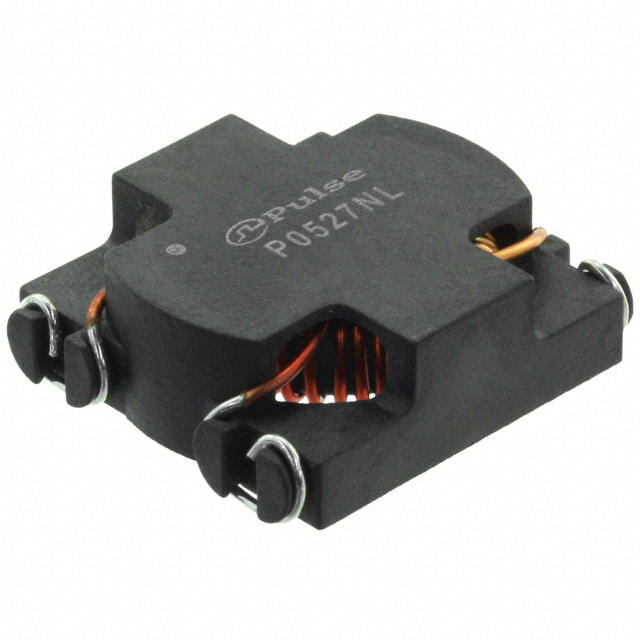

The P0527NL is a surface-mount common mode choke manufactured by Pulse Electronics. It features two lines with an inductance of 530 µH and a maximum DC resistance of 15 mΩ. The component supports a maximum DC current of 7.2 A and operates within a temperature range of -40°C to +120°C. Its physical dimensions are 28.19 mm in length, 25.4 mm in width, and 10.03 mm in height, housed in an HCCI-68 package.

Common Mode Chokes Feature Summary

Provides common mode noise suppression for power lines
Designed for surface mount technology integration
Operates reliably across extended industrial temperature ranges

Common Mode Chokes Applications

Power supply input filtering
DC-DC converter noise reduction
Industrial equipment EMI suppression

Common Mode Chokes Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with Pulse Electronics or authorized distributors before procurement. Confirm that the HCCI-68 package footprint matches the target PCB design. Ensure the 7.2A current rating and 530µH inductance meet the specific circuit requirements for the intended application environment.

Common Mode Chokes Selection Notes

Select this component when high inductance is required for effective low-frequency noise attenuation in single-channel power applications. The 7.2A current handling capability makes it suitable for moderate-power circuits. Consider the unshielded construction and SMT mounting style for standard PCB assembly processes where space constraints align with the specified package dimensions.

Common Mode Chokes Part Context

This part belongs to the Pulse Electronics SMT Common Mode Chokes category. It is designed for power line filtering applications requiring robust performance in compact surface-mount formats. The product line focuses on providing reliable electromagnetic interference suppression for electronic systems operating under varying thermal conditions.
