P0544NLT

Overview

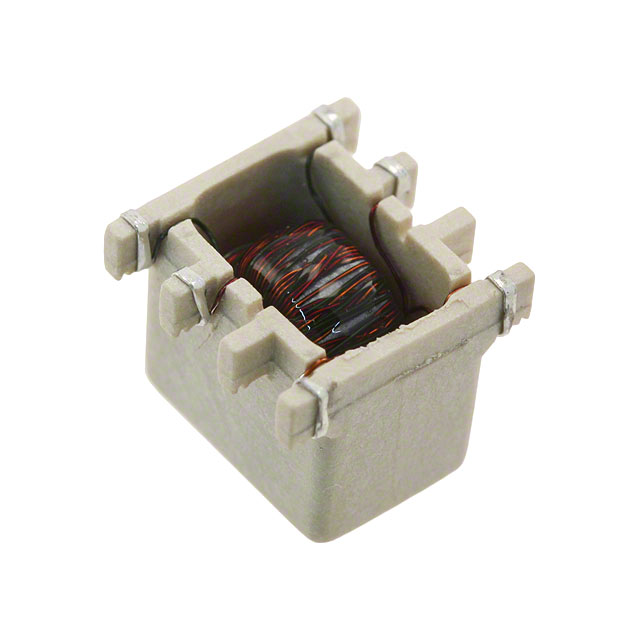

P0544NLT is a surface mount pulse transformer manufactured by Pulse Electronics. It features a 1:1:1 turns ratio and an inductance of 3.3mH. The component has an ET value of 45.1Vµs and operates within a temperature range of -40°C to +130°C. Dimensions are 9.02mm x 8.64mm with a maximum height of 7.62mm. Isolation voltage is rated at 1500 Vrms.

Feature Summary

• Provides galvanic isolation for gate drive signals
• Supports high-temperature operation up to 130°C
• Designed for surface mount PCB assembly

Applications

• Gate drive signal transmission
• Isolated power supply control circuits
• High-frequency switching applications

Procurement Notes

Verify the manufacturer part number P0544NLT against official Pulse Electronics documentation to ensure authenticity. Confirm that the specific package variant matches the required surface mount footprint dimensions. Check RoHS compliance status if environmental regulations apply to the final assembly. Ensure the supplier provides valid traceability records for quality assurance purposes.

Selection Notes

Select this component when a 1:1:1 isolated pulse transformer is required for gate drive applications. Consider the 3.3mH inductance and 45.1Vµs ET value for circuit compatibility. Verify that the operating temperature range meets the system's thermal requirements. Ensure the surface mount package fits the available PCB space constraints.

Part Context

The P0544NLT belongs to the Pulse Transformers category from Pulse Electronics. It is designed for high-reliability applications requiring electrical isolation. The component supports automated surface mount manufacturing processes. It is suitable for industrial and commercial electronic systems needing robust signal coupling.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
