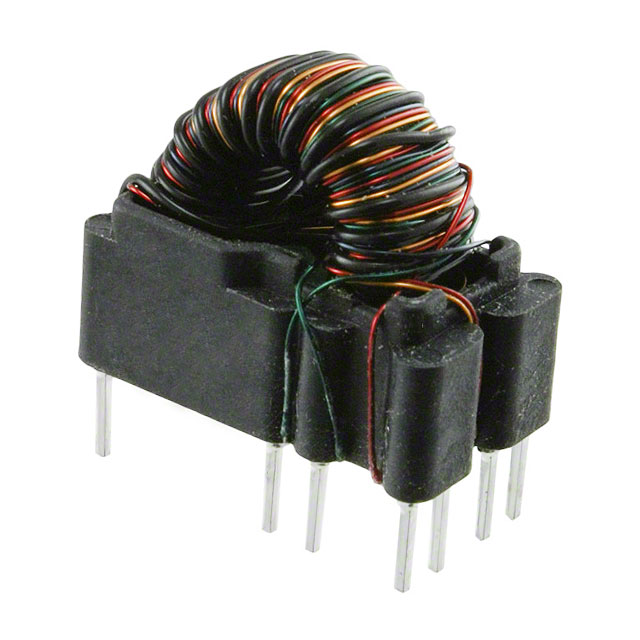

P0585NL

$4.03

Description：PULSE XFMR 1:1:1 450UH
Series：-
Mfr：Pulse Electronics
Package：Tube

SKU:0f77efdc9328 Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：PULSE XFMR 1:1:1 450UH
Series：-
Mfr：Pulse Electronics
Package：Tube
Transformer Type：-
Inductance：450µH
ET (Volt-Time)：95VµS
Turns Ratio - Primary:Secondary：1:1:1:1:1
Mounting Type：Through Hole
Size / Dimension：0.810" L x 0.480" W (20.57mm x 12.19mm)
Height - Seated (Max)：0.750" (19.05mm)
Operating Temperature：-40°C ~ 125°C

Download product information

P0585NL

Overview

The P0585NL is a pulse transformer manufactured by Pulse Electronics, designed for through-hole mounting. It features a 1:1:1:1:1 isolation ratio and an inductance of 450µH. This component serves as an isolation transformer within electronic circuits.

Feature Summary

Provides electrical isolation with a 1:1:1:1:1 turn ratio
Designed for through-hole board mounting

Applications

Signal isolation in electronic circuits

Procurement Notes

Verify the specific datasheet for detailed electrical characteristics and mechanical dimensions before integration. Confirm RoHS compliance status and environmental certifications required for your region. Ensure the through-hole footprint matches your PCB layout design constraints.

Selection Notes

Select this component when a 1:1:1:1:1 isolation ratio is required for signal transmission. The 450µH inductance value should be evaluated against circuit frequency requirements. Through-hole technology suitability must align with the assembly process capabilities.

Part Context

This part belongs to the Pulse Transformers category from Pulse Electronics. It is classified specifically as an isolation transformer. The product line focuses on providing reliable signal isolation solutions for various electronic applications.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs if considering alternative components.
