P0926NL

Overview

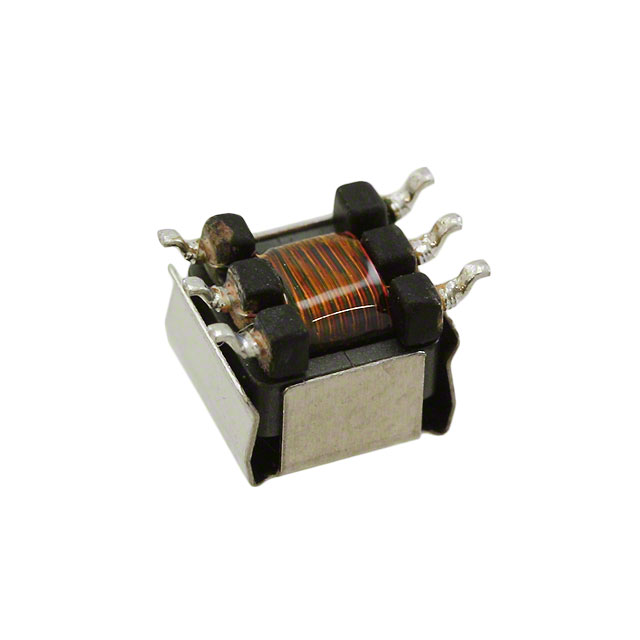

The P0926NL is a surface-mount gate drive transformer manufactured by Pulse Electronics. It features a 1:1:1 turns ratio and provides 1500 VDC isolation voltage. The component has a primary inductance of 300 uH, with both primary and secondary DC resistances specified at 2 Ohms. It utilizes a gull-wing SMD package with six terminals for PCB mounting.

Feature Summary

• Provides galvanic isolation for gate drive circuits
• Supports high-temperature operation up to 130 C
• Features a compact surface-mount footprint

Applications

• Gate drive signal transmission
• Power supply control circuits
• Isolated interface applications

Procurement Notes

Verify the specific datasheet version when sourcing, as manufacturer documentation may contain updates regarding mechanical dimensions or electrical tolerances. Confirm that the gull-wing terminal configuration matches the target PCB footprint design. Ensure the selected component meets the required isolation voltage standards for the intended application environment.

Selection Notes

Select this component for applications requiring isolated gate drive signals with a 1:1:1 ratio. Consider the 2 Ohm DC resistance for power loss calculations in the drive path. Verify thermal management requirements given the 130 C maximum operating temperature limit. Ensure the 1500 VDC isolation rating satisfies system safety and noise immunity specifications.

Part Context

This part belongs to the SMT Gate Drive Transformers series from Pulse Electronics. It is designed for surface-mount assembly processes. The component serves as an alternative to through-hole transformers in space-constrained designs. It supports modern automated placement equipment due to its standardized gull-wing package geometry.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference with other 1:1:1 gate drive transformers only if electrical parameters and package dimensions are identical.
