P1167.333NL

Fixed Inductors Overview

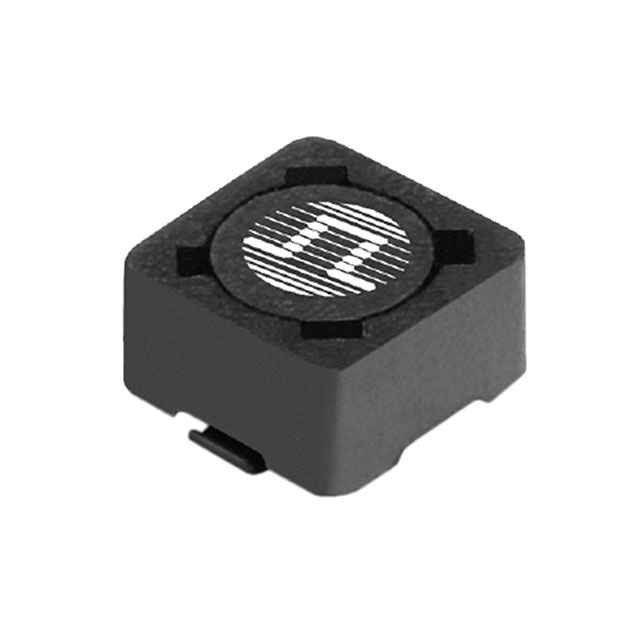

The P1167.333NL is a fixed shielded wirewound inductor from the Pulse Electronics P1167 series, designed for surface mount applications. It features an inductance of 33 µH with a tolerance of ±20%. The component supports a maximum current rating and saturation current (Isat) of 1.1 A, while maintaining a maximum DC resistance (DCR) of 170 mΩ. It exhibits a self-resonant frequency of 17 MHz when tested at 100 kHz. The unit operates within a temperature range of -40°C to 130°C and utilizes a nonstandard package measuring 7.54 mm in length and width, with a maximum height of 4.50 mm.

Fixed Inductors Feature Summary

• Shielded wirewound construction minimizes electromagnetic interference.
• High thermal stability suitable for demanding environments.
• Compact surface mount footprint facilitates automated assembly.

Fixed Inductors Applications

• Power supply filtering circuits
• Signal processing stages
• General-purpose electronic equipment

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against official documentation to ensure correct packaging configuration. Confirm that the selected variant matches the required electrical parameters and physical dimensions for your design. Cross-reference manufacturer part numbers with distributor identifiers to avoid procurement errors.

Fixed Inductors Selection Notes

Select this component based on its 33 µH inductance value and 1.1 A current handling capability. Ensure the 170 mΩ DC resistance aligns with efficiency requirements. Verify that the 17 MHz self-resonant frequency meets circuit performance needs and that the operating temperature range covers the intended application environment.

Fixed Inductors Part Context

This component belongs to the P1167NL series of power inductors manufactured by Pulse Electronics. The series offers various inductance values tailored for surface mount technology. These components are engineered for reliability in standard electronic assemblies requiring stable inductive performance.

Fixed Inductors Replacement Considerations

P1167.333NLT serves as a parameter-equivalent substitute within the same product family.
