P1503

Overview

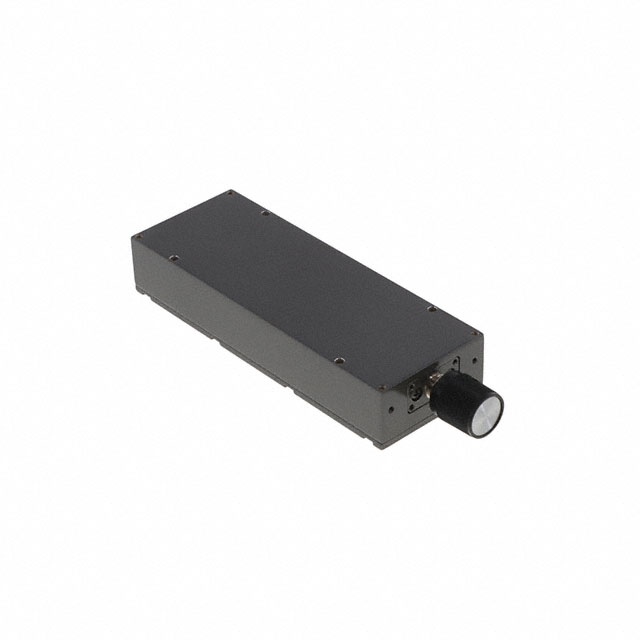

The P1503 is a general-purpose phase shifter module manufactured by L3 Narda-MITEQ. It operates within a frequency range of 0Hz to 2.3GHz and supports an RF power level of 100W. The component utilizes SMA connectors for interface connectivity and is housed in a dedicated module package designed for robust performance in radio frequency applications.

Feature Summary

• Provides phase shifting functionality across a broad frequency spectrum
• Engineered for high-power RF signal handling capabilities
• Features standard SMA connector interfaces for integration

Applications

• Radio frequency signal processing systems
• General purpose RF circuit modules
• Communication equipment phase adjustment

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm current operational parameters and compliance standards. Ensure compatibility with system requirements regarding frequency range and power handling before procurement. Cross-reference part numbers with official L3 Narda-MITEQ catalogs to avoid counterfeit or obsolete inventory sources.

Selection Notes

Select this component when a general-purpose phase shifter is required for frequencies up to 2.3GHz. Consider the 100W power rating and SMA connector type for system integration. Evaluate space constraints due to the module packaging format against available board real estate in the target application design.

Part Context

This component belongs to the L3 Narda-MITEQ portfolio of RF miscellaneous integrated circuits and modules. It serves as a specialized passive device for manipulating signal phase in wireless and communication architectures, distinct from active amplifiers or mixers within the same product family.

Replacement Considerations

Consult official L3 Narda-MITEQ substitution guides for verified equivalent models. Generic replacements may not match the specified 100W power handling or precise phase characteristics without rigorous testing.
