P1506

Overview

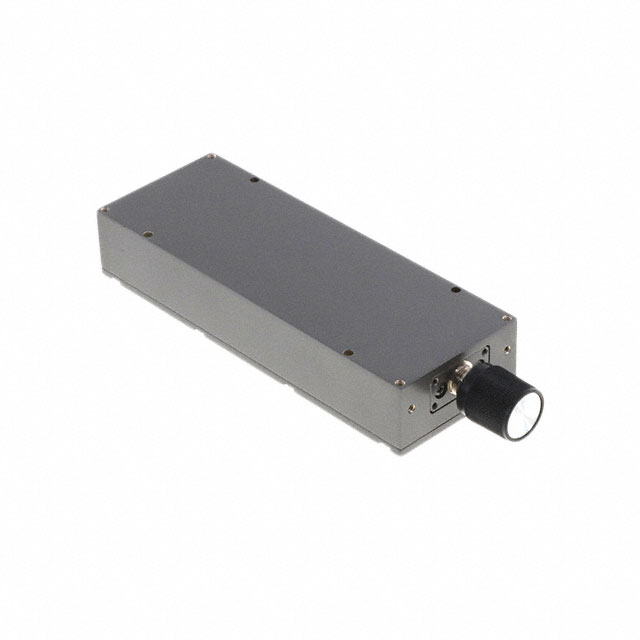

The L3 Narda-MITEQ P1506 is a general-purpose RF phase shifter module designed for microwave applications. It operates across a frequency range of 0Hz to 18.6GHz, providing versatile signal control capabilities. The device functions as an integrated circuit module suitable for broad-spectrum RF systems requiring precise phase adjustment.

Feature Summary

• General-purpose RF phase shifting functionality
• Broad frequency operation from DC to 18.6GHz

Applications

• Microwave communication systems
• RF test and measurement equipment
• Phased array antenna systems

Procurement Notes

Verify the specific datasheet version and ordering suffix with the manufacturer or authorized distributor before purchase. Confirm that the component meets all required electrical specifications for your application. Ensure compatibility with system interface requirements and environmental conditions. Request official documentation to validate performance parameters and reliability standards.

Selection Notes

Select this component based on its wide frequency coverage and general-purpose design. Evaluate whether the 0Hz to 18.6GHz range aligns with system bandwidth needs. Consider integration into modules requiring compact phase control solutions. Assess suitability for demanding environments typical in microwave technology applications.

Part Context

The P1506 belongs to the P1500 series of RF components manufactured by L3 Narda-MITEQ. This series focuses on microwave and RF technologies, leveraging over 60 years of industry expertise. The company designs standard and custom components for various electronic applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
