P1507

Overview

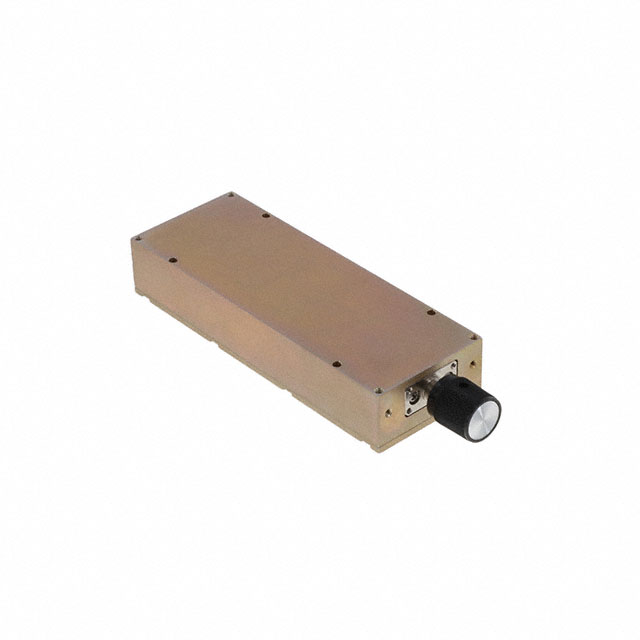

The L3 Narda-MITEQ P1507 is an active RF phase shifter module designed for general-purpose microwave applications. It operates across a frequency range of 0Hz to 18.6GHz, providing precise signal phase control within this broad spectrum. The component utilizes SMA connectors for interface connectivity and is housed in a compact module package. Classified under RF Misc ICs and Modules, the P1507 supports continuous phase adjustment capabilities essential for beamforming and antenna array systems. Its design ensures reliable performance in high-frequency environments, making it suitable for radar, communications, and test equipment where stable phase shifting over a wide bandwidth is required.

Feature Summary

• Provides continuous phase shifting functionality for RF signals
• Operates across a wide frequency range from DC to 18.6GHz
• Utilizes SMA connector interfaces for standard integration
• Designed as a general-purpose module for microwave applications

Applications

• Phased array antenna systems
• Microwave communication links
• Radar signal processing
• RF test and measurement equipment

Procurement Notes

Verify the specific datasheet version and pinout configuration before integration, as manufacturing revisions may occur. Confirm that the SMA connector gender and mating requirements align with your system design. Ensure environmental conditions such as temperature and humidity fall within the specified operating limits defined in the official L3 Narda-MITEQ documentation. Cross-reference the part number with authorized distributors to guarantee authenticity and traceability.

Selection Notes

Select the P1507 when a wideband phase shift capability up to 18.6GHz is required without discrete component complexity. Consider its module form factor for ease of PCB integration compared to bare ICs. Evaluate the SMA interface compatibility against existing system connectors. Assess whether the general-purpose classification meets the specific linearity and power handling needs of the target application.

Part Context

The P1507 belongs to the P1500 series of phase shifters manufactured by L3 Narda-MITEQ, a recognized leader in microwave and RF solutions. This series focuses on providing robust, high-performance components for demanding electronic systems. The module format simplifies implementation in complex RF architectures, offering a balance between performance and integration convenience for engineers designing modern communication and sensing technologies.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult official L3 Narda-MITEQ documentation or authorized distributor catalogs for potential cross-references or next-generation replacements.
