P410QM223M300AH101

Overview

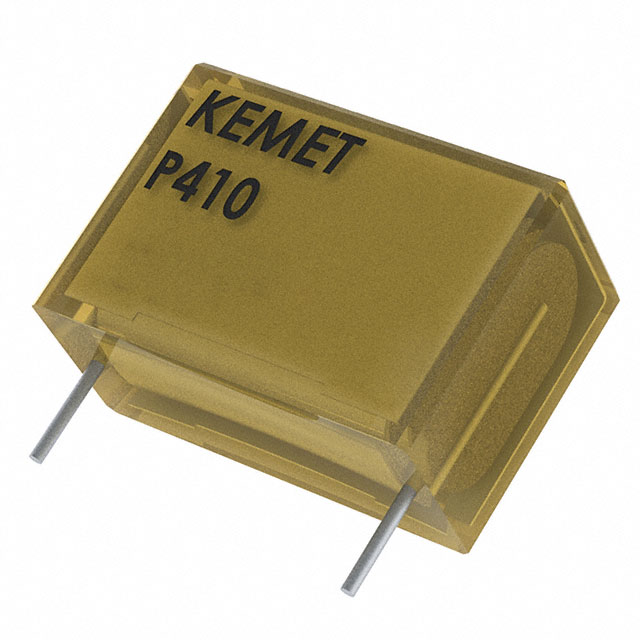

The KEMET P410QM223M300AH101 is a metallized paper film capacitor designed for X1 class interference suppression. It features a capacitance of 22 nF with a ±20% tolerance and operates at 300 VAC or 100 VDC. The component utilizes radial through-hole mounting with a 15.2 mm lead spacing and 0.8 mm lead diameter. Encapsulated in self-extinguishing material meeting UL 94 V-0 standards, it offers high reliability for across-the-line applications where failure could cause electric shock hazards.

Feature Summary

• Constructed from multilayer metallized paper encapsulated in self-extinguishing material
• Designed for X1 class safety suppression in across-the-line configurations
• Capacitor failure mode prevents electric shock hazards in line-to-ground applications

Applications

• Across-the-line interference suppression circuits
• Line-to-ground noise filtering
• Safety-critical power supply input stages

Procurement Notes

Verify the specific suffix AH101 against official KEMET documentation to confirm lead form and packaging details. Ensure the application environment does not exceed the maximum operating temperature of +85°C. Confirm that the 300VAC rating aligns with the local mains voltage requirements. Cross-reference the X1 safety classification with relevant regional regulatory standards before integration.

Selection Notes

Select this component when X1 safety certification is mandatory for across-the-line filtering. The 22 nF value and 300VAC rating suit standard single-phase AC inputs. Consider the radial package dimensions for PCB layout constraints. Verify compatibility with peak surge voltages present in the target circuit environment.

Part Context

This part belongs to the KEMET P410 series of metallized paper capacitors. The series is engineered specifically for electromagnetic interference suppression in AC power lines. The P410QM variant denotes the specific capacitance and voltage configuration within this family, utilizing paper dielectric for robust performance in high-stress environments.

Replacement Considerations

Direct substitutes must match the X1 safety rating, 300VAC/100VDC ratings, 22nF capacitance, and 15.2mm pitch. Verify equivalent self-healing properties and UL 94 V-0 enclosure standards. Generic film capacitors lacking X1 certification are not suitable replacements due to safety implications.
