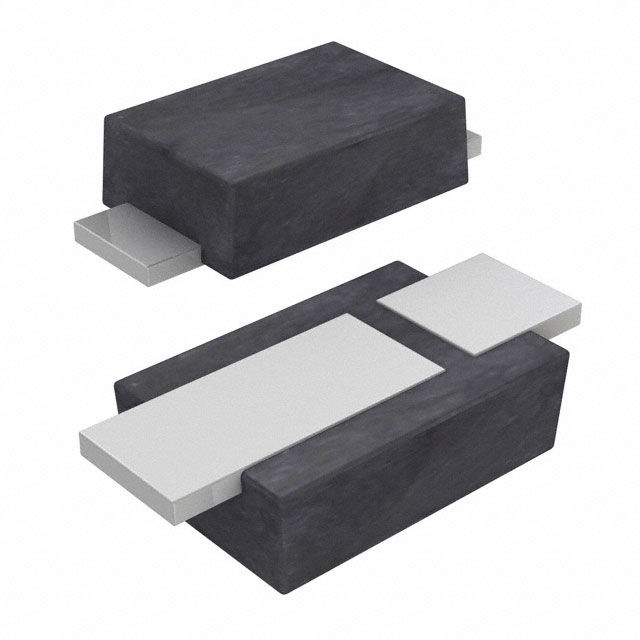

Tvs Diodes P4HE20A_R1_00001 product image

P4HE20A_R1_00001

$0.48

Description：TVS DIODE 20VWM 32.4VC SOD123HE
Series：-
Mfr：Panjit International Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:d2bb99ebfe5c Category: TVS Diodes Brand: Panjit International Inc.

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

P4HE20A_R1_00001 is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Panjit International Inc.. Its product description is TVS DIODE 20VWM 32.4VC SOD123HE. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for P4HE20A_R1_00001

Description：TVS DIODE 20VWM 32.4VC SOD123HE
Series：-
Mfr：Panjit International Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Zener
Bidirectional Channels：-
Voltage - Reverse Standoff (Typ)：20V
Voltage - Breakdown (Min)：22.2V
Voltage - Clamping (Max) @ Ipp：32.4V
Current - Peak Pulse (10/1000µs)：12.3A
Power - Peak Pulse：400W
Power Line Protection：No
Applications：General Purpose
Capacitance @ Frequency：-
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：SOD-123H
Supplier Device Package：SOD-123HE
Unidirectional Channels：1
Grade：-
Qualification：-

Tvs Diodes datasheet and documents for P4HE20A_R1_00001
