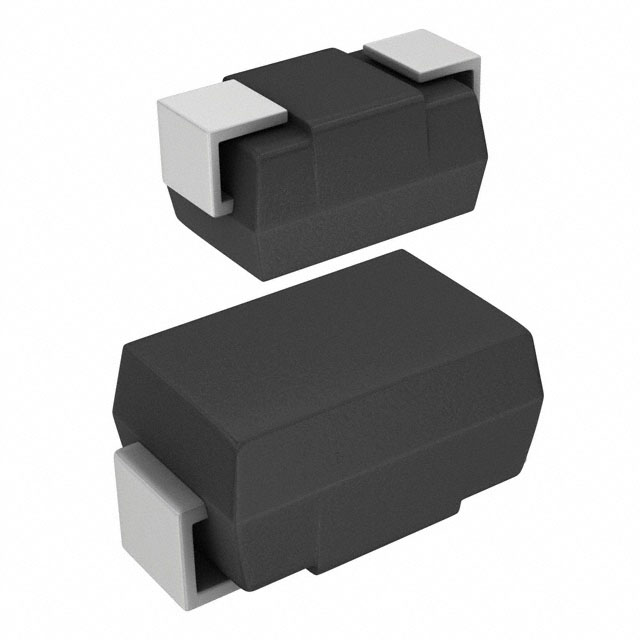

Tvs Diodes P4SMAJ8.5CA_R1_00001 product image

P4SMAJ8.5CA_R1_00001

$0.36

Description：TVS DIODE 8.5VWM 14.4V DO214AC
Series：P4SMAJ
Mfr：Panjit International Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:e447e02d1c26 Category: TVS Diodes Brand: Panjit International Inc.

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

P4SMAJ8.5CA_R1_00001 is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Panjit International Inc.. Its product description is TVS DIODE 8.5VWM 14.4V DO214AC. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for P4SMAJ8.5CA_R1_00001

Description：TVS DIODE 8.5VWM 14.4V DO214AC
Series：P4SMAJ
Mfr：Panjit International Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Zener
Bidirectional Channels：1
Voltage - Reverse Standoff (Typ)：8.5V
Voltage - Breakdown (Min)：9.44V
Voltage - Clamping (Max) @ Ipp：14.4V
Current - Peak Pulse (10/1000µs)：27.7A
Power - Peak Pulse：400W
Power Line Protection：No
Applications：General Purpose
Capacitance @ Frequency：-
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：DO-214AC, SMA
Supplier Device Package：DO-214AC (SMA)
Unidirectional Channels：-
Grade：-
Qualification：-

Tvs Diodes datasheet and documents for P4SMAJ8.5CA_R1_00001
