P50-052P1-S1-EA

$3.33

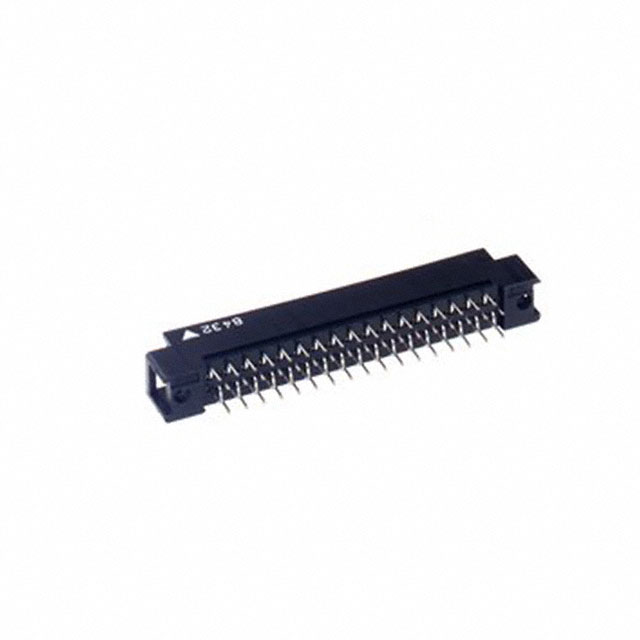

Description：CONN HEADER VERT 52POS 1.27MM
Series：Pak 50, P50
Mfr：3M
Package：Bulk

SKU:a9d1afe61b01 Category: Headers, Male Pins Brand: 3M

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

P50-052P1-S1-EA is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists 3M. Its product description is CONN HEADER VERT 52POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for P50-052P1-S1-EA

Description：CONN HEADER VERT 52POS 1.27MM
Series：Pak 50, P50
Mfr：3M
Package：Bulk
Connector Type：Plug
Contact Type：Center Strip Contact
Pitch - Mating：0.050" (1.27mm)
Number of Positions：52
Number of Rows：2
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Fastening Type：Latch Holder
Contact Length - Mating：-
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.421" (10.70mm)
Contact Shape：-
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA), Nylon, Glass Filled
Features：-
Operating Temperature：-55°C ~ 85°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：0.5A
Voltage Rating：-

Headers, Male Pins datasheet and documents for P50-052P1-S1-EA

P50-052P1-S1-EA

Headers, Male Pins Overview

The P50-052P1-S1-EA is a 52-position board-mount plug connector from the 3M Pak 50 series. It features a 1.27 mm (0.05 in) pitch with two rows of male pin contacts. Designed for through-hole straight installation, the connector utilizes gold-plated copper alloy terminals and a black nylon insulation body rated UL 94 V-0. The unit supports a current rating of 500 mA and operates within a temperature range of -55°C to +85°C.

Headers, Male Pins Feature Summary

Four-wall shrouded design prevents misalignment and terminal damage during mating
Locking and popping buckles ensure secure connection stability
Compatible with wave soldering processes using integrated retention clips
Dual contact design with straight beam structure reduces insertion force

Headers, Male Pins Applications

Board-to-board connections
Industrial automation systems
Data center infrastructure designs

Headers, Male Pins Procurement Notes

Verify the specific part number against official 3M documentation to confirm availability and exact specifications. Cross-reference datasheet TS-2046 for accurate mechanical dimensions and electrical ratings. Ensure compatibility with mating sockets before procurement. Check RoHS compliance status via manufacturer regulatory appendices.

Headers, Male Pins Selection Notes

Select this component when a 52-position, 1.27 mm pitch header is required for vertical board-to-board applications. Consider the P50E series if right-angle mounting or different retention clip options are needed. Verify that the mating socket matches the Pak 50 series specifications for proper alignment and electrical performance.

Headers, Male Pins Part Context

This connector belongs to the 3M Pak 50 family, which provides high-reliability interconnect solutions. The series offers various configurations including straight and right-angle headers, as well as sockets with or without flanges. The Pak 50 line is engineered for dense circuit layouts requiring robust signal integrity and mechanical stability.
