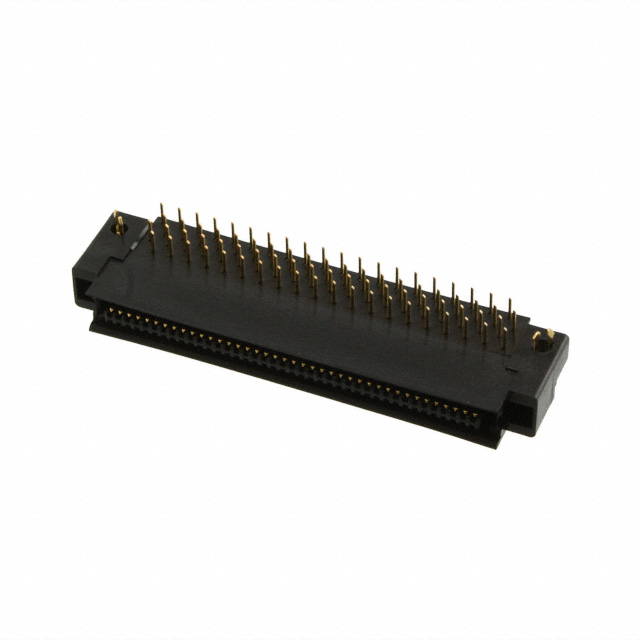

Arrays, Edge Type, Mezzanine (Board To Board) P50-080P-RR1-EA product image

P50-080P-RR1-EA

$4.31

Description：CONN PLUG 80POS R/A GOLD
Series：Pak 50, P50
Mfr：3M
Package：Bulk

SKU:db385a1e3890 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: 3M

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

P50-080P-RR1-EA is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists 3M. Its product description is CONN PLUG 80POS R/A GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for P50-080P-RR1-EA

Description：CONN PLUG 80POS R/A GOLD
Series：Pak 50, P50
Mfr：3M
Package：Bulk
Connector Type：Plug, Center Strip Contacts
Number of Positions：80
Pitch：0.050" (1.27mm)
Number of Rows：2
Mounting Type：Through Hole, Right Angle
Features：Board Lock, Flange
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Mated Stacking Heights：-
Height Above Board：0.275" (6.99mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for P50-080P-RR1-EA

P50-080P-RR1-EA
