P5000NL

Overview

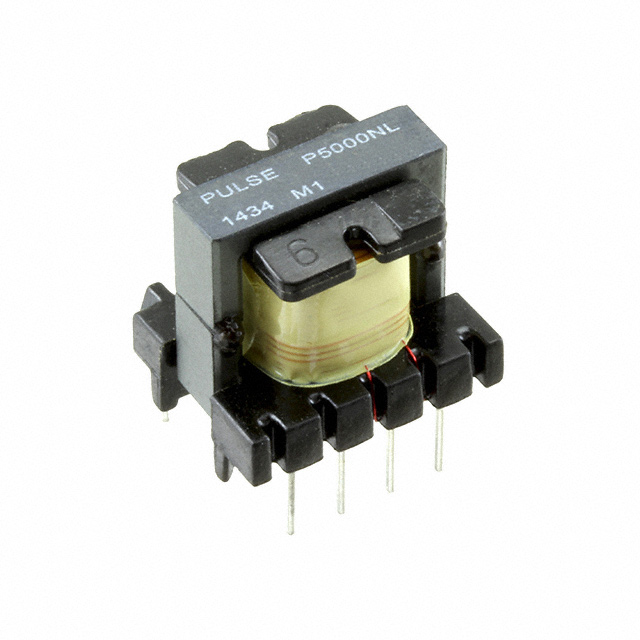

The P5000NL is a power transformer manufactured by Pulse Electronics, designed for through-hole mounting. It features an input voltage range of 85VAC to 265VAC and provides an output power of 2.000W. The component includes isolation capabilities rated at 4000V. It utilizes a specific winding configuration with a ratio of 1:0.07:0.07. The device complies with RoHS-6 standards, ensuring environmental safety for electronic assemblies.

Feature Summary

• Through-hole mounting style for PCB integration
• Wide input voltage acceptance from 85VAC to 265VAC
• High isolation voltage rating of 4000V
• RoHS-6 compliant construction

Applications

• Power supply units requiring high isolation
• Industrial equipment power stages
• Consumer electronics AC-DC conversion

Procurement Notes

Verify the specific datasheet version for the P5000NL to confirm exact pinout configurations and thermal characteristics. Ensure that the required isolation voltage of 4000V aligns with the target application's safety regulations. Cross-reference the 1:0.07:0.07 ratio against circuit design requirements to prevent mismatch in voltage transformation needs.

Selection Notes

Select this component when a robust isolation barrier is critical for system safety. The wide input voltage range supports global compatibility without needing multiple variants. Consider the physical dimensions and through-hole requirements during PCB layout planning to ensure adequate clearance for the 4000V isolation distance.

Part Context

This part belongs to the Pulse Transformers category from Pulse Electronics. It serves as a fundamental building block for isolated power conversion systems. The manufacturer specializes in magnetic components for various industrial and commercial applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
