P5008NL

Overview

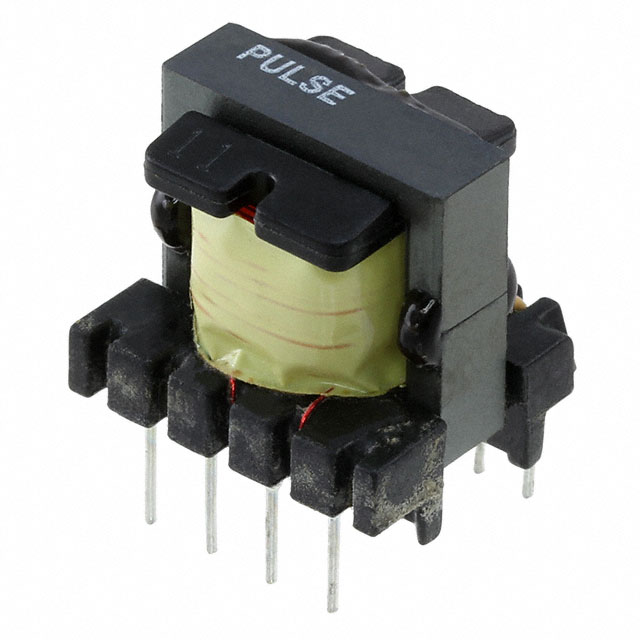

The P5008NL is a power transformer manufactured by Pulse Electronics, designed for switch-mode power supply applications. It features through-hole mounting and supports an input voltage range of 85VAC to 265VAC. The component provides a power rating of 5.5W with an output voltage of 6V. Key electrical specifications include an inductance of 100 uH and an isolation voltage of 4000V. It operates within a temperature range of -30°C to +110°C. Physical dimensions are approximately 16.0mm length, 18.2mm width, and 17.7mm height.

Feature Summary

• Supports wide AC input voltage range from 85VAC to 265VAC
• Provides isolated power conversion with 4000V isolation voltage
• Designed for surface or through-hole integration in SMPS circuits

Applications

• Switch-mode power supplies (SMPS)
• AC-DC power conversion modules
• Industrial power adapters

Procurement Notes

Verify the specific datasheet version as conflicting data exists regarding package type and pin configuration. Confirm whether the unit requires through-hole or surface mount processing based on the final design requirements. Ensure the 6V output specification matches the target circuit load. Check RoHS compliance status for regulatory adherence. Validate physical footprint compatibility with PCB layout constraints before ordering.

Selection Notes

Select this component for applications requiring 5.5W power isolation with high voltage withstand capability. Consider the operating temperature range up to 110°C for thermal management planning. Compare against alternative transformers if different output voltages or lower profiles are needed. Ensure the 100 uH inductance value aligns with the switching frequency requirements of the power supply design.

Part Context

The P5008NL belongs to the Pulse Electronics power transformer portfolio, specifically engineered for general-purpose power conversion. It serves as a critical isolation component in AC-DC converters. The product line emphasizes reliability and compliance with international safety standards. It is distinct from Pulse's LAN and signal transformer series.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
