P522309

Antennas RF Overview

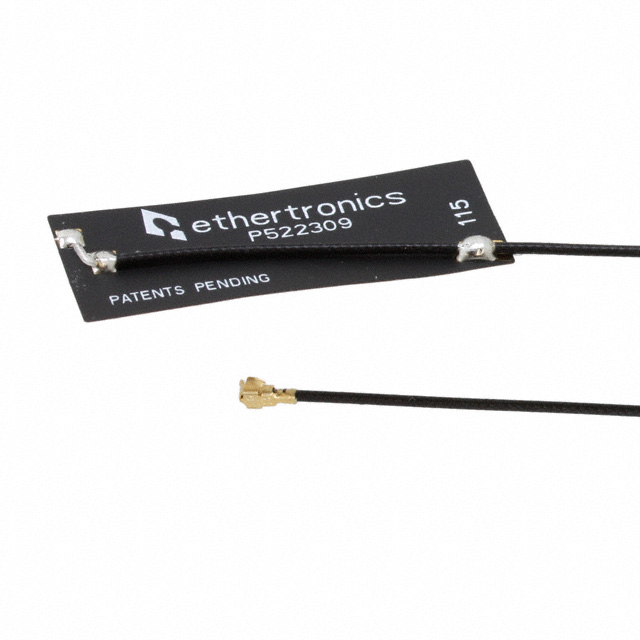

The P522309 is a multi-band PCB antenna manufactured by KYOCERA AVX, designed for cellular communication applications. It supports five frequency bands including GSM, DCS, PCS, UMTS, and WCDMA. The component features linear polarization and a power rating of 2 watts. It utilizes an adhesive mounting style with an I-PEX MHF1 connector interface.

Antennas RF Feature Summary

• Supports five distinct cellular frequency bands
• Linear polarization configuration
• Adhesive mounting design

Antennas RF Applications

• GSM network devices
• LTE communication modules
• UMTS handsets
• WCDMA equipment

Antennas RF Procurement Notes

Verify the specific connector type and band support requirements against the official datasheet before procurement. Confirm that the adhesive mounting method aligns with the target assembly process. Ensure compatibility with the required RF interface standards for the intended cellular application.

Antennas RF Selection Notes

Select this component when a compact, multi-band solution is required for cellular integration. Consider the 2-watt power rating and linear polarization characteristics. Evaluate the adhesive mounting option against mechanical constraints and thermal management needs in the final device design.

Antennas RF Part Context

This part belongs to the RF Antennas category from KYOCERA AVX. It is engineered for mobile communication systems requiring broad band coverage. The product integrates multiple frequency capabilities into a single surface-mountable unit.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify functional equivalence if considering alternative multi-band cellular antennas.
