P6KE47A

P6KE47A is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Lumimax Optoelectronic Technology. Its product description is TVS 600W 47Vbr Uni-Dir DO-15. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for P6KE47A

• Description：TVS 600W 47Vbr Uni-Dir DO-15
• Series：P6KE
• Mfr：Lumimax Optoelectronic Technology
• Package：Tape & Reel (TR)
• Type：Zener
• Bidirectional Channels：-
• Voltage - Reverse Standoff (Typ)：40.2V
• Voltage - Breakdown (Min)：44.65V
• Voltage - Clamping (Max) @ Ipp：64.8V
• Current - Peak Pulse (10/1000µs)：9.26A
• Power - Peak Pulse：600W
• Power Line Protection：No
• Applications：General Purpose
• Capacitance @ Frequency：-
• Operating Temperature：-55°C ~ 175°C (TJ)
• Mounting Type：Through Hole

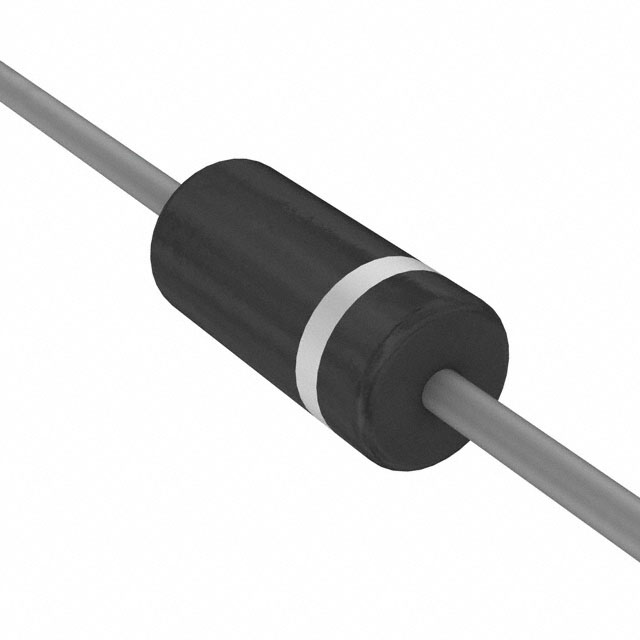

• Package / Case：DO-204AC, DO-15, Axial
• Supplier Device Package：DO-15
• Unidirectional Channels：1
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for P6KE47A
