P6KE6.8ARLG

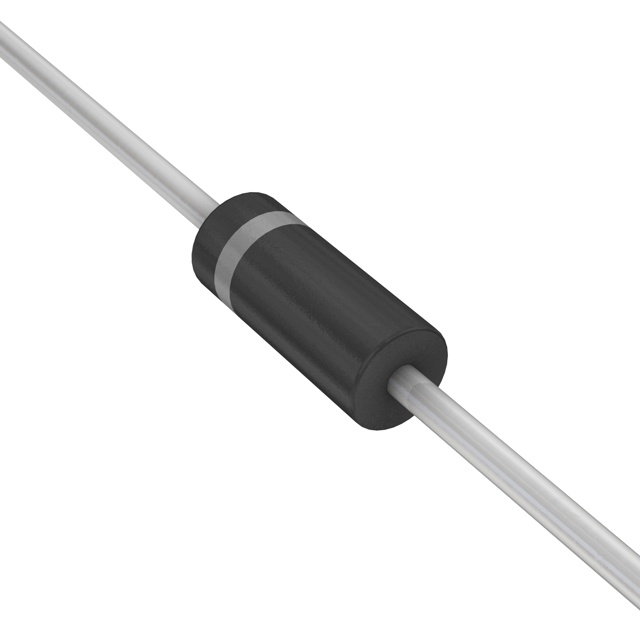

P6KE6.8ARLG is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Littelfuse Inc.. Its product description is TVS DIODE 5.8VWM 10.5VC AXIAL. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for P6KE6.8ARLG

• Description：TVS DIODE 5.8VWM 10.5VC AXIAL
• Series：-
• Mfr：Littelfuse Inc.
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Zener
• Bidirectional Channels：-
• Voltage - Reverse Standoff (Typ)：5.8V
• Voltage - Breakdown (Min)：6.45V
• Voltage - Clamping (Max) @ Ipp：10.5V
• Current - Peak Pulse (10/1000µs)：57A (8/20µs)
• Power - Peak Pulse：600W
• Power Line Protection：No
• Applications：General Purpose
• Capacitance @ Frequency：-
• Operating Temperature：-55°C ~ 150°C (TJ)
• Mounting Type：Through Hole
• Package / Case：T-18, Axial
• Supplier Device Package：Axial
• Unidirectional Channels：1
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for P6KE6.8ARLG
