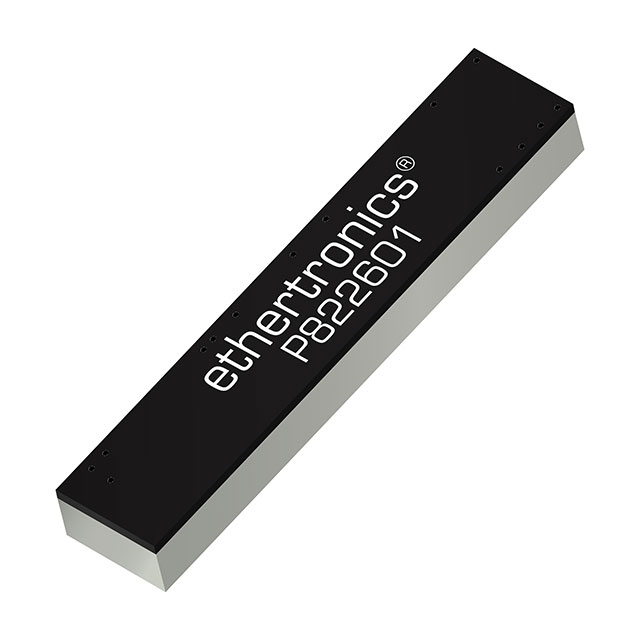

P822601

Antennas RF Overview

The P822601 is a broadband FR4 embedded antenna designed for 5G NTN, LTE, and LPWA applications. It utilizes Isolated Magnetic Dipole (IMD) technology to address integration challenges in compact devices. The component supports multiple frequency bands including 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, and 2.7GHz. It features surface mount termination and a maximum height of 3.52mm. The antenna operates within VSWR limits of 2.5 and handles a maximum power of 2W.

Antennas RF Feature Summary

• Utilizes Isolated Magnetic Dipole (IMD) technology for enhanced performance in constrained spaces
• Broadband design supporting diverse cellular protocols including LTE, 5G NTN, and LPWA
• Low-profile surface mount construction suitable for embedded mobile device integration

Antennas RF Applications

• Smartphones and tablets requiring embedded connectivity
• IoT modules utilizing NB-IoT or LTE-M protocols
• Mobile communication devices supporting global cellular standards

Antennas RF Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required packaging options such as tape and reel or cut tape. Confirm RoHS compliance status and moisture sensitivity level requirements prior to procurement. Ensure the selected variant matches the intended production volume and lead time constraints provided by the manufacturer.

Antennas RF Selection Notes

Select this component when space-constrained designs require broad frequency coverage across sub-GHz and microwave bands. The IMD technology offers advantages for maintaining radiation efficiency in metal-shielded environments. Consider the low profile dimensions for thin form-factor devices requiring integrated cellular capabilities without external protrusions.

Antennas RF Part Context

This part belongs to the Prestta series of embedded antennas from KYOCERA AVX. It is engineered for modern mobile platforms demanding high data rates and reliable connectivity. The design addresses the increasing density of electronic components within handheld devices while maintaining regulatory compliance for global wireless standards.

Antennas RF Replacement Considerations

The P822602 serves as a related variant within the same product family. Verify functional equivalence regarding impedance matching and mechanical footprint before substitution. Consult official documentation to confirm if pinout configurations and mounting requirements remain identical for direct replacement scenarios.
