PA0184NL

$2.37

Description：PULSE XFMR 1:1 1.2MH
Series：-
Mfr：Pulse Electronics
Package：Tube

SKU:9c3545b4a9ae Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：PULSE XFMR 1:1 1.2MH
Series：-
Mfr：Pulse Electronics
Package：Tube
Transformer Type：-
Inductance：1.2mH
ET (Volt-Time)：27.2VµS
Turns Ratio - Primary:Secondary：1:01
Mounting Type：Surface Mount
Size / Dimension：0.355" L x 0.340" W (9.02mm x 8.64mm)
Height - Seated (Max)：0.300" (7.62mm)
Operating Temperature：-40°C ~ 130°C

Download product information

PA0184NL

Overview

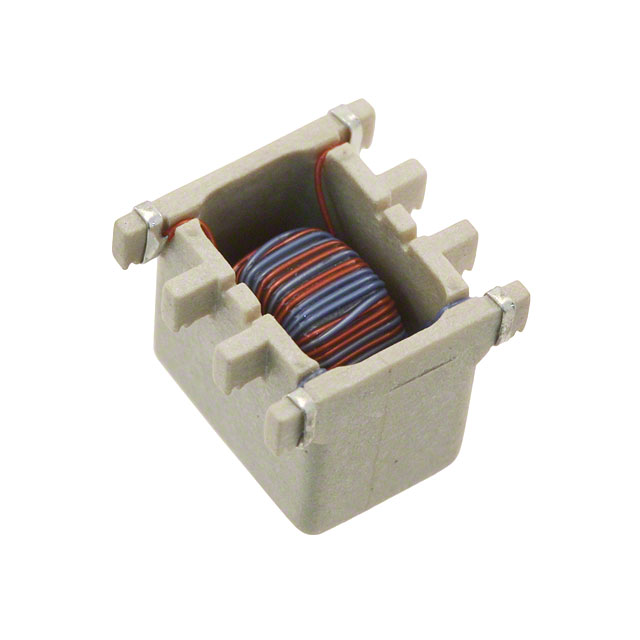

The PA0184NL is a surface-mount pulse transformer manufactured by Pulse Electronics. It features a 1:1 turns ratio and an inductance of 1.2mH. The component provides an isolation voltage of 1.5kV and operates within a temperature range of -40°C to +130°C. Its physical dimensions are 9.02mm in length, 8.64mm in width, and a maximum seated height of 7.62mm. The ET value is specified at 27.2Vµs.

Feature Summary

Surface mount construction for automated assembly
High isolation voltage rating of 1.5kVrms
Wide operating temperature capability up to 130°C

Applications

Signal isolation circuits
Pulse transmission systems
Audio and signal transformers

Procurement Notes

Verify the specific suffix (e.g., NLT) against the required packaging format such as cut tape or reel. Confirm RoHS compliance status and moisture sensitivity level requirements with the manufacturer before finalizing orders. Ensure the lead time aligns with production schedules as these components may be subject to factory special order constraints.

Selection Notes

Select this component when a 1:1 isolated pulse transformation is required in a compact surface-mount footprint. The 1.2mH inductance and 27.2Vµs ET value define its magnetic performance limits. Consider the 7.62mm height constraint for board clearance and verify that the 1.5kV isolation meets the safety requirements of the target application environment.

Part Context

This part belongs to the Pulse Transformers category under Pulse Electronics Power. It serves as a specialized passive component for signal integrity and isolation in electronic circuits. The product line focuses on high-reliability magnetics for industrial and commercial applications requiring robust electrical separation between circuit stages.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout compatibility and electrical parameters if considering alternative suppliers. Consult official distributor databases for cross-reference data.
