PA0185NLT

$2.18

Description：PULSE XFMR 1:1 980UH
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:581d73c3bc84 Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：PULSE XFMR 1:1 980UH
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Transformer Type：-
Inductance：980µH
ET (Volt-Time)：17.2VµS
Turns Ratio - Primary:Secondary：1:01
Mounting Type：Surface Mount
Size / Dimension：0.340" L x 0.460" W (8.64mm x 11.68mm)
Height - Seated (Max)：0.160" (4.06mm)
Operating Temperature：-40°C ~ 130°C

Download product information

PA0185NLT

Overview

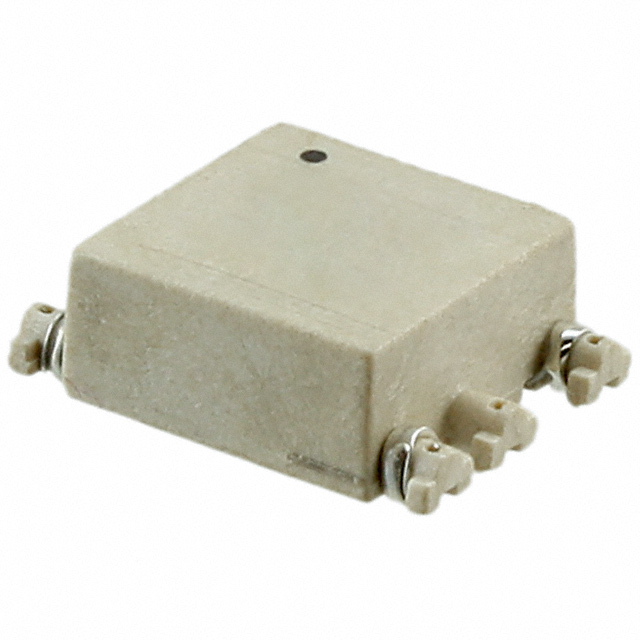

The PA0185NLT is a surface-mount pulse transformer manufactured by Pulse Electronics. It features a 1:1 turns ratio and an inductance of 980µH. The component has an ET value of 17.2Vµs and operates within a temperature range of -40°C to +130°C. Its physical dimensions are 8.64mm in length, 11.68mm in width, and a maximum height of 4.06mm. The device utilizes a toroidal core structure and is designed for SMD/SMT installation on printed circuit boards.

Feature Summary

Surface mount toroidal gate drive transformer design
Basic and operational insulation capabilities
High thermal stability up to 130°C

Applications

Power supply gate drive circuits
Isolated signal transmission
Transformer-coupled logic interfaces

Procurement Notes

Verify the specific datasheet version and RoHS compliance status before procurement. Confirm that the 1:1 ratio and 980µH inductance match the target circuit requirements. Ensure the 4.06mm height fits within the assembly clearance constraints. Check for any recent PCN updates regarding manufacturing location or material changes.

Selection Notes

Select this component when a compact, high-temperature pulse transformer with basic isolation is required for gate drive applications. The 1:1 ratio suits direct coupling needs without voltage transformation. Consider the 17.2Vµs ET value for duty cycle limitations. The SMD package facilitates automated assembly processes.

Part Context

This part belongs to the SMT Toroid Gate Drive Transformer Series from Pulse Electronics. It is categorized under transformers and specifically as a pulse transformer. The series focuses on providing reliable isolation and signal integrity in power electronics applications using surface-mount technology.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs through electrical parameter matching if considering alternatives.
