PA2006NL

Overview

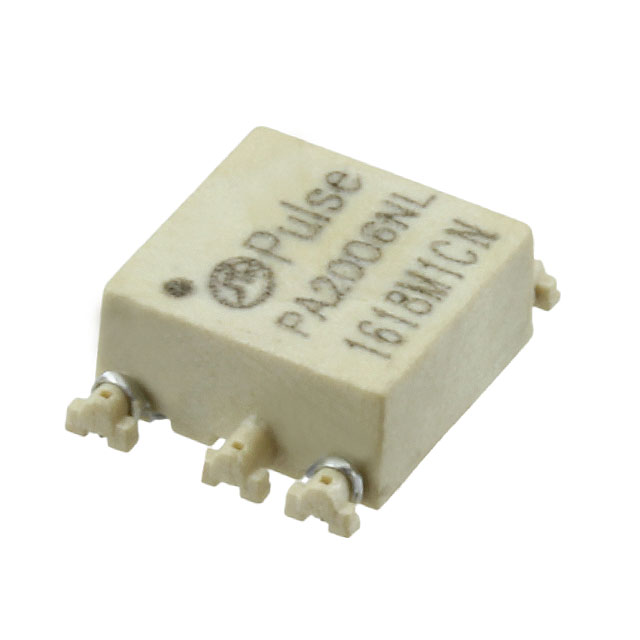

The PA2006NL is a surface mount gate drive transformer manufactured by Pulse Electronics. It features an 864µH inductance and a 1:1 turns ratio, designed for high-frequency pulse transmission. The component supports SMT mounting on printed circuit boards and is rated for operation within standard industrial temperature ranges. Its construction ensures reliable signal isolation between primary and secondary circuits in power electronics applications.

Feature Summary

• Surface mount gate drive transformer design
• 1:1 electrical isolation ratio
• 864µH inductance specification

Applications

• Gate drive isolation in power converters
• Pulse transformer applications in switching circuits
• Signal isolation in power electronics modules

Procurement Notes

Verify the specific manufacturer part number against official Pulse Electronics documentation to confirm current availability status. Check for any product discontinuance notifications or lifecycle changes prior to finalizing procurement plans. Ensure compatibility with existing board layouts and soldering processes.

Selection Notes

Select this component when a 1:1 isolated gate drive signal transfer is required in a surface mount configuration. Consider the 864µH inductance value for matching circuit timing requirements. Verify that the physical dimensions and pinout align with the target PCB footprint design constraints.

Part Context

This component belongs to the Pulse Transformers category from Pulse Electronics, specifically designed for gate drive applications. It serves as a critical isolation element in power management systems, ensuring safe and accurate signal transmission between control logic and power switches.

Replacement Considerations

Consult official distributor databases for cross-reference data. Verify electrical parameters such as inductance and turns ratio before substituting. Confirm mechanical compatibility including package type and pin configuration to ensure seamless integration.
