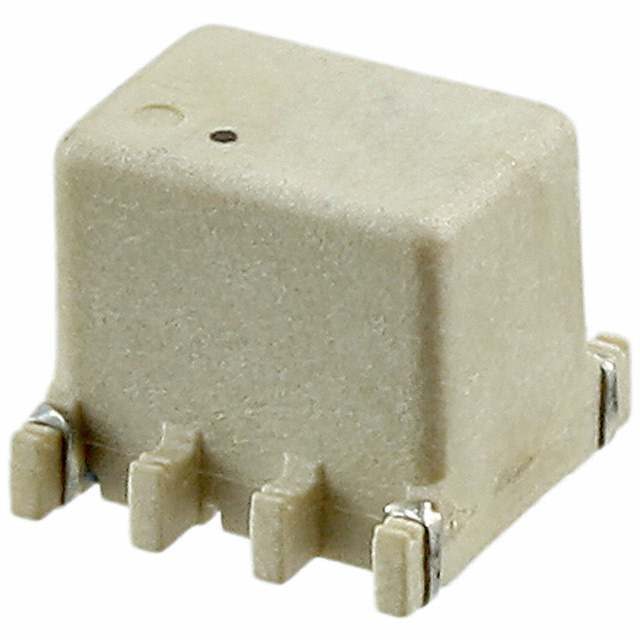

PA2007NL

Description：PULSE XFMR 1:1 1.49MH
Series：-
Mfr：Pulse Electronics
Package：Tube

SKU:f14e9ad6576b Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：PULSE XFMR 1:1 1.49MH
Series：-
Mfr：Pulse Electronics
Package：Tube
Transformer Type：-
Inductance：1.49mH
ET (Volt-Time)：53VµS
Turns Ratio - Primary:Secondary：1:01
Mounting Type：Surface Mount
Size / Dimension：0.355" L x 0.340" W (9.02mm x 8.64mm)
Height - Seated (Max)：0.300" (7.62mm)
Operating Temperature：-40°C ~ 130°C

Download product information

PA2007NL

Overview

The PA2007NL is a surface-mount pulse transformer manufactured by Pulse Electronics, designed for gate drive applications. It features a 1:1 turns ratio and an inductance of 1.49 mH. The component provides high volt-second capability with an ET value of 53 Vµs. It utilizes a 6-terminal SMD package with dimensions of 8.6 mm length, 6.7 mm width, and a maximum seated height of 7.62 mm. The device operates within a temperature range of -40°C to 130°C and complies with RoHS standards.

Feature Summary

Designed specifically for gate drive applications
Provides high volt-second capability
Surface mount construction for automated assembly

Applications

Gate drive circuits
Power electronics control systems

Procurement Notes

Verify the specific suffix (NL vs NLT) against official datasheets to confirm packaging type, as tube and reel variants may exist within the same family. Confirm that the 1.49 mH inductance and 53 Vµs ET rating match the target circuit requirements. Ensure the 6-terminal SMD footprint aligns with the PCB layout. Check for any recent product change notifications regarding material or manufacturing site updates.

Selection Notes

Select this component when a robust pulse transformer with high volt-second capability is required for gate drive isolation. The 1:1 ratio suits applications requiring signal transmission without voltage transformation. Consider the 130°C maximum operating temperature for high-thermal environments. Verify compatibility with the driving circuit's impedance and the controlled device's gate charge requirements.

Part Context

This part belongs to Pulse Electronics' portfolio of power transformers and signal transformers. It is distinct from other PA series components such as the PA2001NLT Ethernet transformer or the PA2009NL gate drive transformer with different ratios. The PA2007NL is specifically categorized under gate drive pulse transformers rather than data communication or general-purpose isolation transformers.
