PA2008NL

Overview

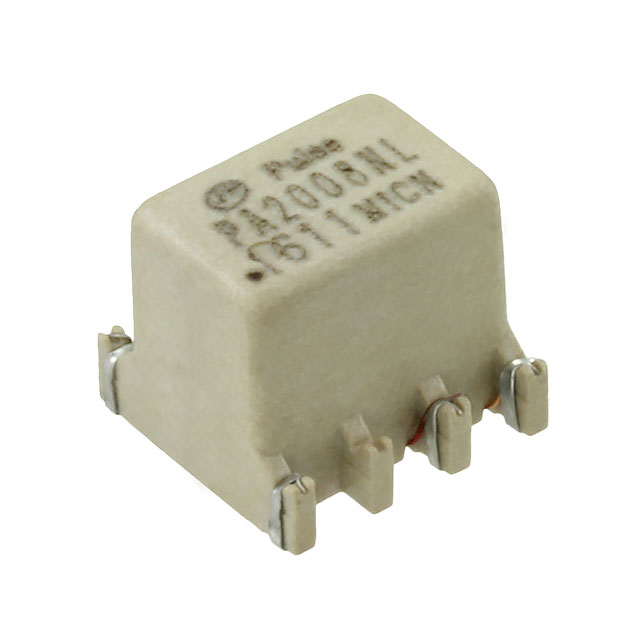

The PA2008NL is a surface mount gate drive transformer manufactured by Pulse Electronics. It features a 1.43 mH inductance and a 2:1:1 turns ratio. The device supports a maximum DC resistance of 1.15 milliohms and offers isolation voltage up to 1500 VDC. Designed for high-frequency applications, it utilizes a compact SMT package suitable for automated assembly processes.

Feature Summary

• Optimized for gate drive signal transmission in power electronics
• High isolation voltage capability for safety compliance
• Compact surface mount design for space-constrained PCB layouts

Applications

• Gate drive circuits for IGBT modules
• MOSFET driver interfaces
• Isolated power supply feedback loops

Procurement Notes

Verify current lifecycle status as the component may be subject to discontinuation notices. Confirm RoHS compliance requirements with the manufacturer prior to ordering. Ensure that the specified packaging format aligns with your production line capabilities. Request updated datasheets to validate electrical parameters against latest revisions.

Selection Notes

Select this component when isolated gate driving signals are required with specific impedance matching. The 2:1:1 ratio suits certain driver topologies. Evaluate thermal performance and mounting constraints for the target application environment. Compare alternative transformers if different isolation ratings or inductance values are necessary.

Part Context

This part belongs to the Pulse Electronics SMT Gate Drive Transformers series. It is designed for reliable signal transfer in switching power converters. The product line emphasizes compactness and electrical isolation for modern power management systems.

Replacement Considerations

Check for direct substitutes within the same family offering identical 2:1:1 ratios and similar inductance values. Verify pinout compatibility and mechanical footprint dimensions before substitution.
