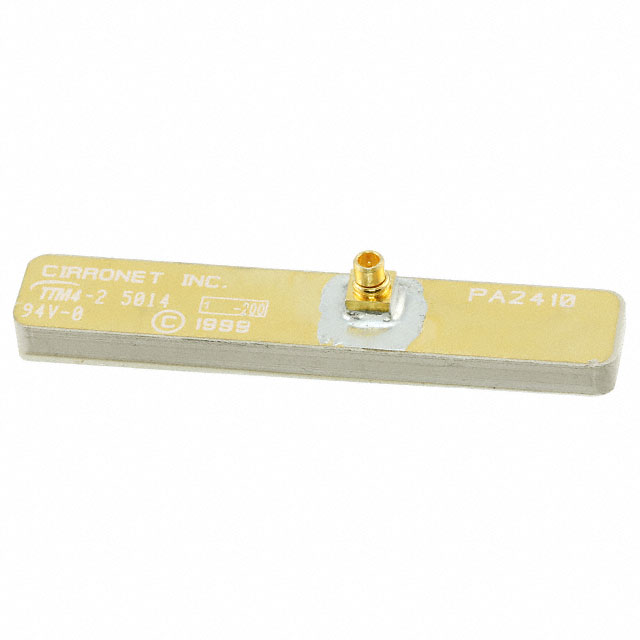

PA2410 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Murata Electronics. Its product description is RF ANT 2.4GHZ FLAT PATCH MMCX. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PA2410
- Description：RF ANT 2.4GHZ FLAT PATCH MMCX
- Series：-
- Mfr：Murata Electronics
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.4GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Flat Patch
- Number of Bands：1
- VSWR：1.9
- Return Loss：-
- Gain：2dBi
- Features：-
- Termination：MMCX
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Chassis Mount
- Height (Max)：-
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for PA2410
Antennas RF Overview
The PA2410 is a 2.4 GHz flat patch antenna manufactured by Murata Electronics, designed for wireless communication applications. It features a fixed gain of 3 dBi and utilizes an MMCX connector for chassis mounting. The component operates within the standard ISM band, providing reliable signal transmission and reception for compact electronic devices requiring integrated RF solutions.
Antennas RF Feature Summary
- Flat patch design optimized for low-profile integration
- Fixed 3 dBi gain for consistent signal performance
- MMCX connector interface for secure chassis mounting
Antennas RF Applications
- Wireless local area network (WLAN) devices
- Bluetooth-enabled consumer electronics
- Industrial IoT sensor nodes
Antennas RF Procurement Notes
Verify current availability status as the PA2410 may be subject to product withdrawal notices. Confirm compatibility with existing chassis designs due to the specific MMCX connector type. Ensure that the 2.4 GHz frequency range aligns with regional regulatory requirements for intended deployment environments.
Antennas RF Selection Notes
Select this antenna when a low-profile, chassis-mounted solution is required for 2.4 GHz applications. The fixed gain and connector type dictate specific mechanical integration needs. Consider space constraints and mounting orientation during the design phase to ensure optimal radiation pattern performance.
Antennas RF Part Context
This component belongs to Murata's RF antenna portfolio, focusing on compact wireless connectivity solutions. It addresses the need for integrated antennas in portable and industrial devices where external antennas are impractical. The design supports modern wireless standards operating in the 2.4 GHz spectrum.
Antennas RF Replacement Considerations
Check for official substitute part numbers from Murata if this model is discontinued. Verify that any replacement maintains the same frequency range, gain specifications, and connector interface to ensure seamless integration without redesigning the host device.
