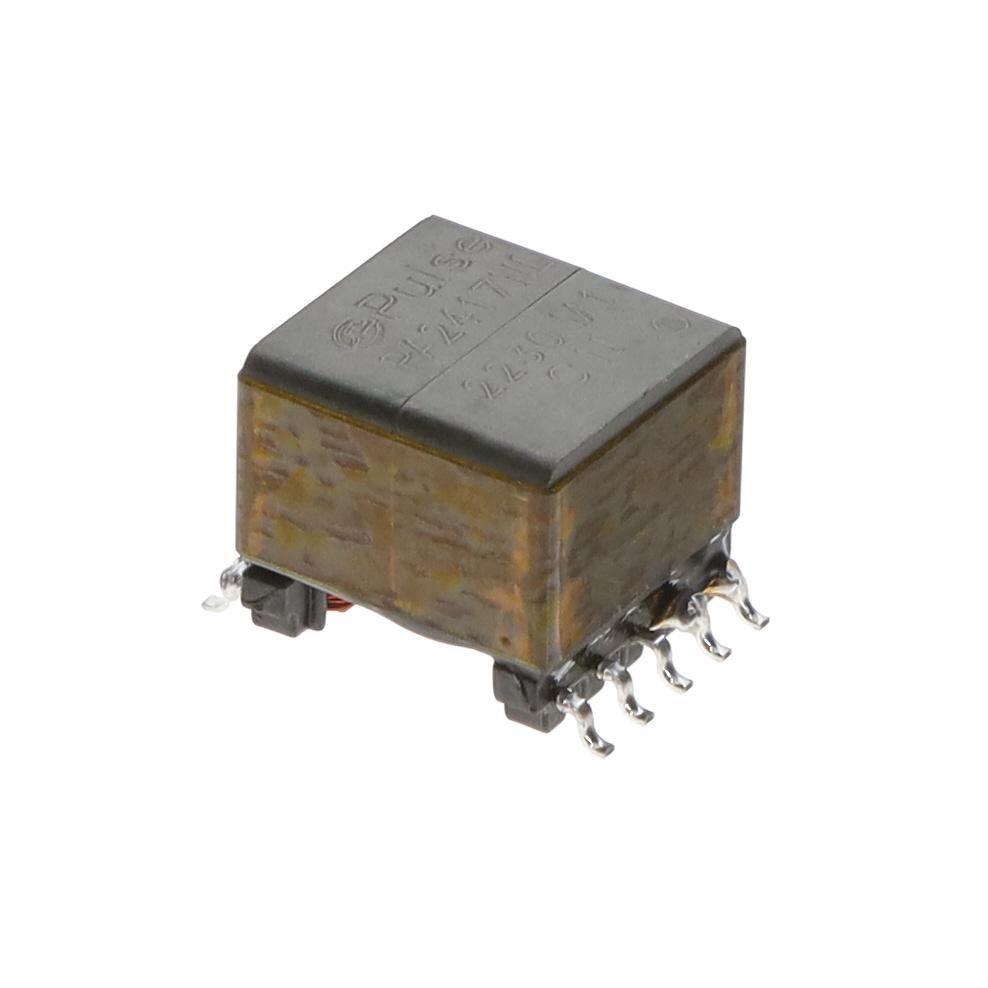

PA2417NL

$2.64

Description：PULSE XFMR 530UH
Series：-
Mfr：Pulse Electronics
Package：Tray

SKU:9f2772055699 Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：PULSE XFMR 530UH
Series：-
Mfr：Pulse Electronics
Package：Tray
Transformer Type：-
Inductance：530µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：-
Mounting Type：Surface Mount
Size / Dimension：0.551" L x 0.516" W (14.00mm x 13.11mm)
Height - Seated (Max)：0.485" (12.32mm)
Operating Temperature：-40°C ~ 130°C

Download product information

PA2417NL

Overview

The PA2417NL is a surface mount power transformer manufactured by Pulse Electronics, designed for resonant forward converter applications. It features a nominal inductance of 530µH and supports a power rating of 60W. The component utilizes a Non-PoE (Non-Power over Ethernet) configuration with a single channel architecture. Constructed for board mounting, it operates within a standard industrial temperature range suitable for high-reliability electronic systems requiring efficient power isolation and conversion.
