Product Detailed Parameters
- Description：2430 MHZ DIR PATCH ANTENNA
- Series：-
- Mfr：Antenna Technologies Limited Company
- Package：Box
- RF Family/Standard：-
- Frequency Group：-
- Frequency (Center/Band)：2.43GHz
- Frequency Range：2.4GHz ~ 2.46GHz
- Antenna Type：-
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：5dBi
- Features：Cable - 50.8mm
- Termination：TNC Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：-
- Applications：-
- Power - Max：10 W
Download product information
Overview

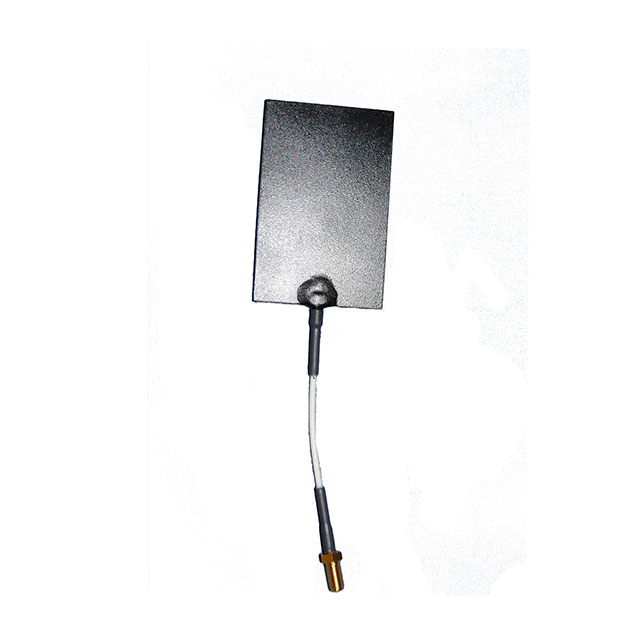

The PA2430TSETM12I is a directional patch antenna manufactured by Antenna Technologies Limited Company, designed for operation at 2430 MHz. It features a TNC male connector and utilizes an adhesive mounting method for secure installation. The component is classified as an RF antenna suitable for specific wireless communication applications requiring directional signal transmission or reception within the designated frequency band.
Feature Summary
- Directional patch antenna design optimized for focused signal coverage
- Integrated adhesive backing for permanent surface mounting
- TNC male connector interface for standard cable attachment
Applications
- Wireless communication systems operating at 2430 MHz
- RF signal transmission and reception setups
- Fixed antenna installations requiring adhesive mounting
Procurement Notes
Verify the exact part number PA2430TSETM12I against manufacturer documentation to ensure compatibility with system requirements. Confirm that the TNC male connector type matches existing cabling infrastructure. Ensure the adhesive mounting specification aligns with the intended installation surface and environmental conditions. Cross-reference technical specifications from official datasheets rather than distributor summaries to validate performance characteristics.
Selection Notes
Select this component when a directional patch antenna is required for the 2430 MHz frequency range. Consider the TNC male connector interface for compatibility with standard RF cables. Evaluate the adhesive mounting option if permanent installation without mechanical fasteners is preferred. Verify that the directional radiation pattern meets the specific coverage needs of the application compared to omnidirectional alternatives.
Part Context
Antenna Technologies Limited Company specializes in designing and manufacturing antennas for commercial enterprise and defense wireless applications. The company produces various antenna types including direction finding, HF, SATCOM, and GPS/Iridium solutions. This product falls within their portfolio of specialized RF components tailored for specific frequency bands and mounting requirements.
Replacement Considerations
No public confirmed substitute part numbers are available for the PA2430TSETM12I. Replacement requires matching the 2430 MHz frequency, TNC male connector, and adhesive mounting style. Consult manufacturer documentation for potential updated versions or compatible series replacements.
