PA2517NL

$2.62

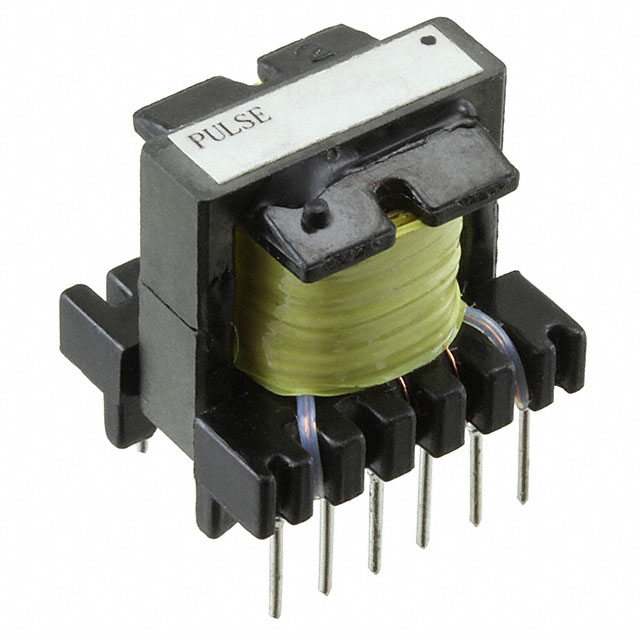

Description：PULSE XFMR 1.2MH
Series：-
Mfr：Pulse Electronics
Package：Tray

SKU:a5d4215c7a52 Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：PULSE XFMR 1.2MH
Series：-
Mfr：Pulse Electronics
Package：Tray
Transformer Type：-
Inductance：1.2mH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：-
Mounting Type：Through Hole
Size / Dimension：0.717" L x 0.630" W (18.20mm x 16.00mm)
Height - Seated (Max)：0.709" (18.00mm)
Operating Temperature：-40°C ~ 130°C

Download product information

PA2517NL

Overview

The PA2517NL is a pulse transformer manufactured by Pulse Electronics, designed for surface mount applications. It features an inductance of 1.2mH and operates within a temperature range of -40°C to +130°C. The component measures 18.2mm in length and 16mm in width, with a maximum installation height of 9.27mm. It is RoHS3 compliant and classified under ECCN EAR99.

Feature Summary

Designed as a pulse transformer for electronic circuits
Supports surface mount technology for PCB integration
Operates reliably across extended industrial temperature ranges

Applications

LAN interface circuits
Power transformer applications
Pulse transformer modules

Procurement Notes

Verify the specific package type against official documentation, as distributor listings may vary between through-hole and surface mount descriptions. Confirm the active status and lead times directly with the manufacturer or authorized suppliers before finalizing procurement plans.

Selection Notes

Select this component based on its 1.2mH inductance requirement and physical footprint constraints. Ensure the design accommodates the specified thermal operating range and mounting style compatibility with the target printed circuit board layout.

Part Context

This part belongs to the Pulse Electronics LAN transformer series. It serves as a critical isolation component in network interface designs, providing signal integrity and electrical separation between differential pairs in data communication systems.

Replacement Considerations

Consult official substitution lists from Pulse Electronics for verified alternatives. Cross-reference pinout configurations and electrical specifications carefully when considering equivalent components from other manufacturers.
