PA2531NL

Overview

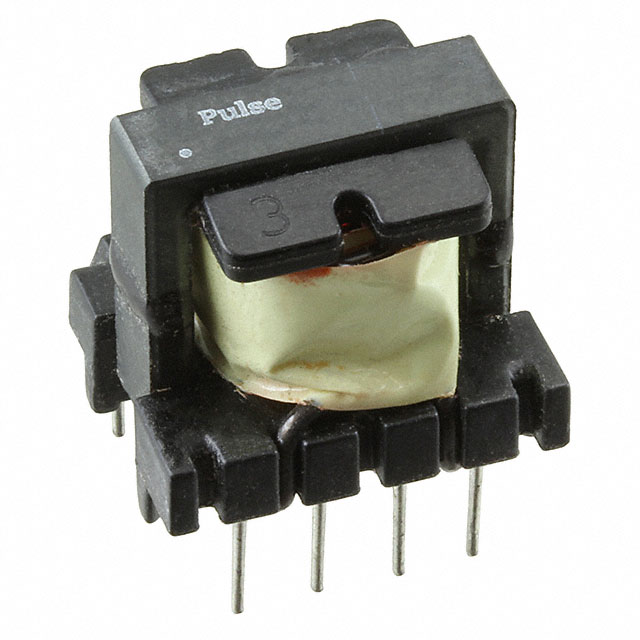

The PA2531NL is a wire wound transformer manufactured by Pulse Electronics, designed for through-hole PCB mounting. It features a primary voltage rating of 12 V and an isolation voltage of 4000 Vrms. The component operates within a temperature range of -40°C to +130°C. Its physical dimensions are 18.20 mm in length, 16.00 mm in width, and 18.00 mm in height.

Feature Summary

• Constructed as a wire wound transformer for robust signal or power handling.

Applications

• Through-hole printed circuit board assembly

Procurement Notes

Verify the current manufacturing status and availability directly with Pulse Electronics or authorized distributors before procurement. Confirm that the specific package dimensions and electrical ratings align with the target design requirements. Ensure compliance with relevant environmental standards such as RoHS if required by the application specifications.

Selection Notes

Select this component when a through-hole wire wound transformer with 12 V primary rating and high isolation voltage is required. Consider the operating temperature range and physical footprint constraints during the design phase. Validate compatibility with the intended circuit topology and mounting process.

Part Context

This part belongs to the Pulse Electronics audio and signal transformers category. It is specifically classified under wire wound transformers. The manufacturer provides technical documentation including datasheets and product change notifications to support engineering integration and lifecycle management.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult official distributor catalogs or manufacturer resources for potential equivalent components if this part is discontinued or unavailable.
