PA2653NL

Overview

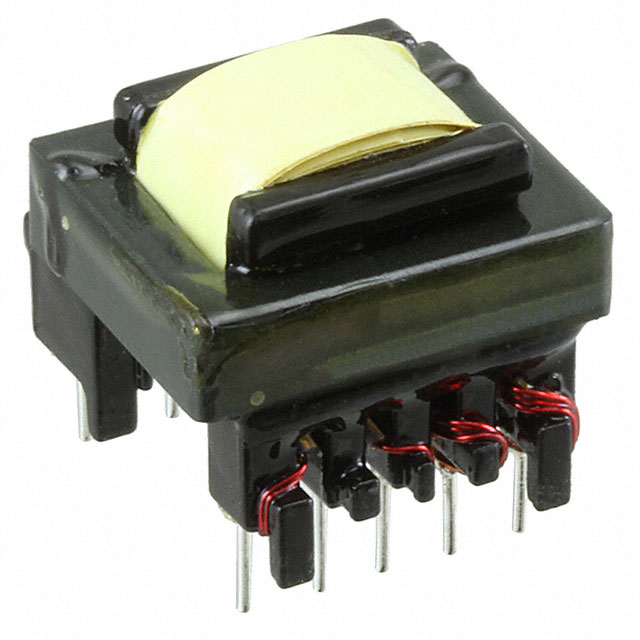

The PA2653NL is a pulse transformer manufactured by Pulse Electronics, designed for through-hole mounting. It features an inductance of 910 µH and supports an input voltage range from 85 V to 253 V. The component has a maximum height of 20.57 mm.

Feature Summary

• Through-hole construction for PCB integration
• Pulse transformer functionality

Applications

• Power supply circuits requiring pulse transformation

Procurement Notes

Verify the specific datasheet version and electrical characteristics against the manufacturer's official documentation before procurement. Confirm that the through-hole package dimensions and pin configuration match the target PCB layout requirements to ensure proper mechanical fit and electrical connectivity.

Selection Notes

Select this component when a 910 µH inductance value is required within a through-hole form factor. Ensure the operating environment accommodates the specified voltage range and physical height constraints. Cross-reference with similar series components if alternative mounting styles or different inductance values are needed.

Part Context

This part belongs to the Pulse Transformers category from Pulse Electronics. It is distinct from common mode chokes and audio transformers offered by the same manufacturer, serving specifically as a pulse transformer for power applications rather than signal filtering or isolation.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
