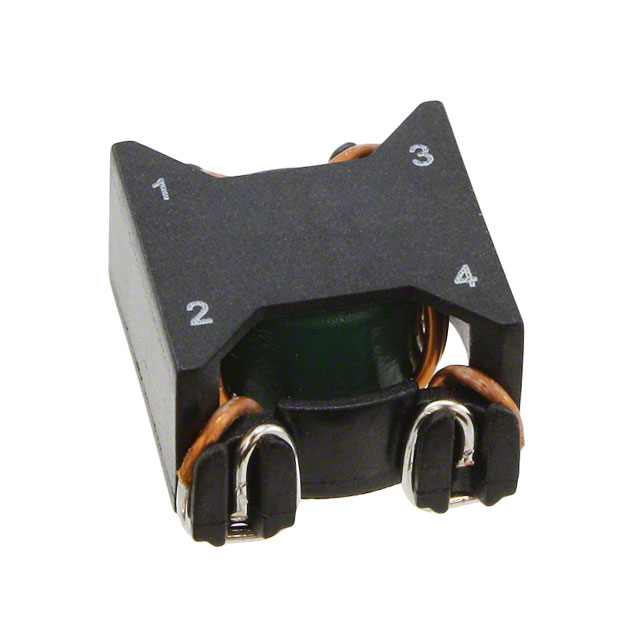

PA2750NL is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 6A 2LN SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PA2750NL
- Description：CMC 6A 2LN SMD
- Series：-
- Mfr：Pulse Electronics
- Package：Tube
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：6A
- DC Resistance (DCR) (Max)：9.4mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 130°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.590" L x 0.715" W (14.99mm x 18.16mm)
- Height (Max)：0.390" (9.91mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PA2750NL
Common Mode Chokes Overview
The PA2750NL is a surface-mount common mode choke manufactured by Pulse Electronics. It features two lines with a maximum rated current of 6A and a maximum DC resistance (DCR) of 9.4mOhms. The component has an inductance of 400uH and operates within a temperature range of -40°C to 130°C. Its physical dimensions are 0.560 inches in length, 0.646 inches in width, and a maximum height of 0.350 inches. The device utilizes a horizontal package with four pads.
Common Mode Chokes Feature Summary
- Surface-mount construction for automated PCB assembly
- Dual-line configuration for differential signal filtering
- High-current capability up to 6A
- Low DC resistance for minimal power loss
Common Mode Chokes Applications
- High-speed data line protection
- Power supply input filtering
- Industrial control systems
- Automotive electronics
Common Mode Chokes Procurement Notes
Verify the manufacturer part number PA2750NL against official Pulse Electronics documentation to ensure authenticity. Confirm that the specific order matches the required electrical parameters, including the 6A current rating and 9.4mOhm DCR. Check for RoHS3 compliance status as indicated in the datasheet. Ensure the packaging type aligns with production requirements, noting that tray packaging may be specified by distributors.
Common Mode Chokes Selection Notes
Select this component when a surface-mount common mode choke with a 6A current rating is required. The low DCR value supports efficient power transmission. Verify that the 400uH inductance meets the noise suppression needs of the target circuit. Ensure the physical footprint fits the available PCB space, considering the 0.350-inch maximum height constraint.
Common Mode Chokes Part Context
The PA2750NL belongs to the PA27XX series of SMT common mode chokes from Pulse Electronics. This series offers various current ratings up to 20A. The component is designed for applications requiring robust EMI suppression in compact spaces. It shares design characteristics with other parts in the series, such as the PA2752NL, but differs in current handling and impedance specifications.
Common Mode Chokes Replacement Considerations
Consult official Pulse Electronics documentation for verified substitute part numbers. Cross-reference electrical parameters such as current rating, inductance, and DCR before substitution.
