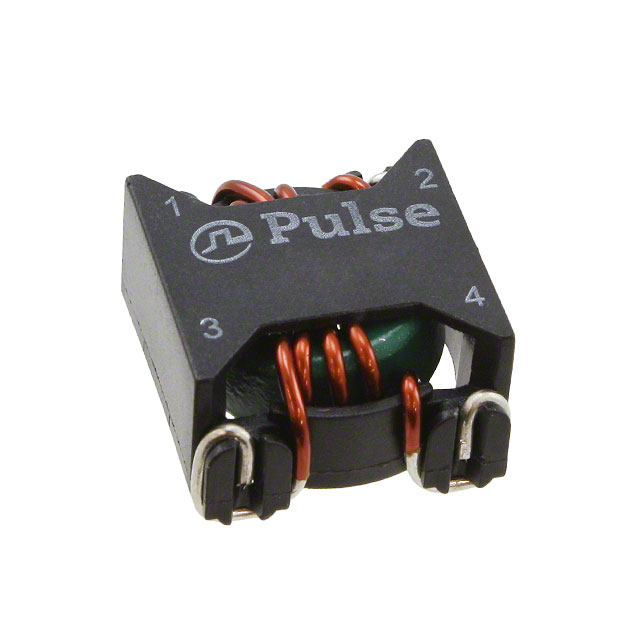

PA2752NL is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 1.4A 2LN SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PA2752NL
- Description：CMC 1.4A 2LN SMD
- Series：-
- Mfr：Pulse Electronics
- Package：Tube
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：1.4A
- DC Resistance (DCR) (Max)：210mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 130°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.670" L x 0.770" W (17.02mm x 19.56mm)
- Height (Max)：0.390" (9.91mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PA2752NL
Common Mode Chokes Overview
The PA2752NL is a surface-mount common mode choke manufactured by Pulse Electronics. It features a two-line configuration with a maximum current rating of 1.4A and a DC resistance (DCR) of 210mOhm. The component measures 19.6mm in length, 17.0mm in width, and 9.9mm in height. It operates within a temperature range of -40°C to 130°C and utilizes a horizontal four-pad package.
Common Mode Chokes Feature Summary
- Surface mount toroidal power construction for compact integration
- Two-line design for differential signal filtering
- High-temperature operation capability up to 130°C
Common Mode Chokes Applications
- Power line filtering in electronic circuits
- Common mode noise suppression in surface mount assemblies
- Signal integrity protection in high-density PCB designs
Common Mode Chokes Procurement Notes
Verify the specific ordering suffix and packaging format against the manufacturer's latest datasheet before procurement. Confirm that the required quantity aligns with standard tube or reel configurations. Ensure the component meets RoHS3 compliance requirements if mandated by your project specifications. Cross-reference the DigiKey part number 553-2190-ND for accurate supply chain tracking.
Common Mode Chokes Selection Notes
Select this component when a low-profile, surface-mount common mode choke is required for power lines. The 1.4A current rating suits moderate power applications. Verify that the 210mOhm DCR fits the efficiency constraints of the circuit. Ensure the 19.6mm x 17.0mm footprint accommodates the available board space without interfering with adjacent components.
Common Mode Chokes Part Context
This component belongs to the Pulse Electronics PA27xx series of common mode chokes. It is designed for surface-mount technology (SMT) applications requiring reliable noise suppression. The series offers various current ratings and inductance values to suit different power line filtering needs in consumer and industrial electronics.
Common Mode Chokes Replacement Considerations
The PA2751NLT is a related variant from the same manufacturer family. Verify compatibility regarding current rating, inductance, and physical dimensions before substitution. Ensure the replacement part meets the same thermal and electrical performance standards required by the original design.
