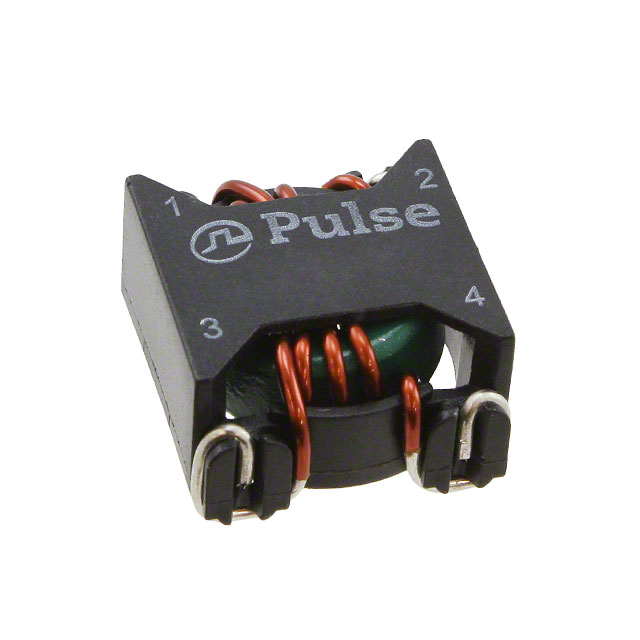

PA2753NL is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 12.5A 2LN SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PA2753NL
- Description：CMC 12.5A 2LN SMD
- Series：-
- Mfr：Pulse Electronics
- Package：Tube
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：12.5A
- DC Resistance (DCR) (Max)：3mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 130°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.670" L x 0.770" W (17.02mm x 19.56mm)
- Height (Max)：0.390" (9.91mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PA2753NL
Common Mode Chokes Overview
The PA2753NL is a surface-mount common mode choke manufactured by Pulse Electronics. It features a toroidal core design with two lines and SMD/SMT termination style. The component supports a maximum DC current of 12.5A and exhibits a maximum DC resistance (DCR) of 3mOhms. Inductance is specified at 95uH with a tolerance range of -35% to +30%. The device operates within a temperature range of -40°C to +125°C and measures 13mm in length, 13mm in width, and 5.6mm in height.
Common Mode Chokes Feature Summary
- Surface mount toroidal construction for compact PCB integration
- Dual-line configuration for effective noise suppression
- Low DC resistance to minimize power loss
Common Mode Chokes Applications
- Signal line filtering in electronic circuits
- Noise suppression in high-current data transmission paths
- EMI reduction in industrial control systems
Common Mode Chokes Procurement Notes
Verify the specific datasheet version before procurement, as product change notifications may alter physical or electrical characteristics. Confirm that the required operating temperature range aligns with the component's rated limits. Ensure the selected packaging format matches the assembly equipment capabilities. Cross-reference the manufacturer part number with authorized distributor listings to confirm authenticity and current production status.
Common Mode Chokes Selection Notes
Select this component when low insertion loss is critical due to its minimal DC resistance. The 12.5A current rating makes it suitable for applications requiring robust handling of direct current alongside signal lines. Verify that the surface-mount footprint dimensions fit the available board space. Consider the inductance value for the specific frequency range of interference that needs attenuation.
Common Mode Chokes Part Context
This component belongs to the series of surface-mount common mode chokes produced by Pulse Electronics. These devices are designed to suppress electromagnetic interference in differential signal lines. The toroidal geometry provides efficient magnetic coupling between the windings while maintaining a low profile suitable for automated surface-mount assembly processes.
Common Mode Chokes Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Evaluate alternative components based on matching inductance, current rating, and physical dimensions if substitution is necessary.
