PA2754NL

Common Mode Chokes Overview

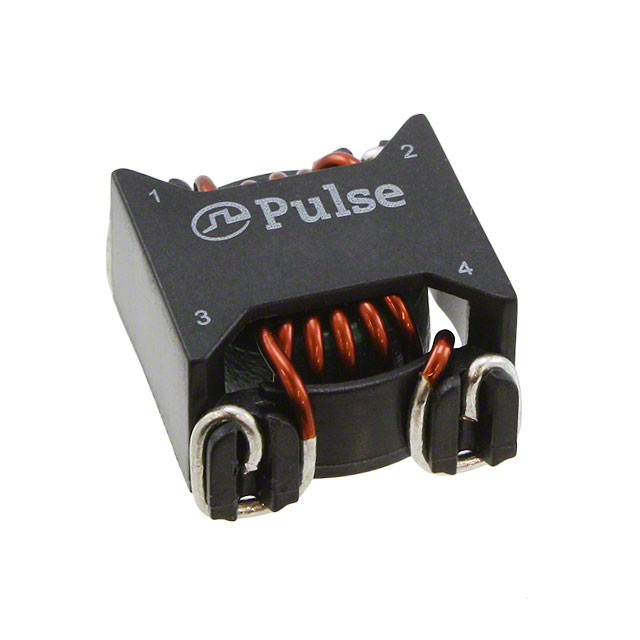

The PA2754NL is a surface-mount common mode choke manufactured by Pulse Electronics. It features an inductance of 215 uH and supports a maximum DC current of 10A. The component has a maximum DC resistance (DCR) of 3.75 mOhms and a self-resolving frequency of 2.2 MHz. It operates within a temperature range of -40°C to +130°C. Physical dimensions are approximately 19.05mm x 20.70mm with a height of 11.18mm.

Common Mode Chokes Feature Summary

• Designed for high-current applications with a 10A rating
• Surface mount construction for automated PCB assembly
• Low DC resistance to minimize power loss

Common Mode Chokes Applications

• Power line filtering
• EMI suppression in electronic circuits

Common Mode Chokes Procurement Notes

Verify the specific package type, as sources indicate variations between tape-and-reel and tube packaging. Confirm the operating temperature range limits against your design requirements, noting discrepancies between -40C/+125C and -40C/+130C in different listings. Ensure the 10A current rating aligns with your circuit's thermal management capabilities.

Common Mode Chokes Selection Notes

Select this component when a high-current common mode choke is required for surface-mount designs. The low DCR makes it suitable for power lines where efficiency is critical. Compare the 215uH inductance value against other models like the PA2744NL if lower current or different impedance characteristics are needed.

Common Mode Chokes Part Context

This part belongs to the SMT Common Mode Chokes category from Pulse Electronics. It is distinct from the PM2754NLT, which shares similar electrical parameters but may differ in packaging or certification such as AEC-Q200. It is also related to the PA2755NL within the same product family.

Common Mode Chokes Replacement Considerations

The PA2755NL is a related model in the same series. Verify compatibility before substitution.
