PA3747.505NL

Common Mode Chokes Overview

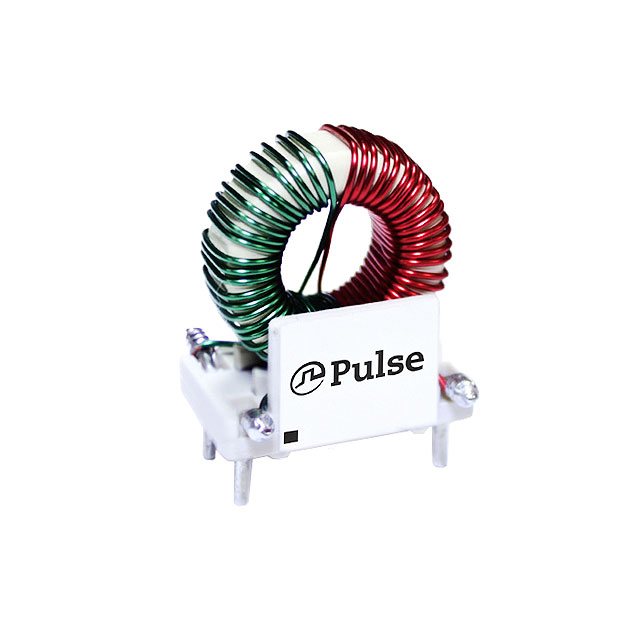

The PA3747.505NL is a two-channel common mode choke filter manufactured by Pulse Electronics, designed for vertical through-hole mounting on printed circuit boards. This unshielded power line component features an inductance of 5 mH and a maximum DC current rating of 1.85 A. It exhibits a typical impedance of 14.4 kOhms and a maximum DC resistance of 103.5 mOhms. The device operates within a temperature range of -40°C to +125°C and measures 19.3 mm in length, 18.2 mm in width, and 22.9 mm in height.

Common Mode Chokes Feature Summary

• Provides effective common mode noise suppression for dual-line power circuits
• Supports high current handling capabilities suitable for robust power applications
• Utilizes a vertical through-hole termination style for secure PCB integration

Common Mode Chokes Applications

• Power supply input filtering
• Battery charger circuits
• Portable electronic device power lines

Common Mode Chokes Procurement Notes

Verify the specific datasheet version before procurement, as manufacturer notifications may indicate changes to physical dimensions or electrical characteristics. Confirm that the through-hole pin configuration matches the target footprint. Ensure the selected component meets the required thermal management standards for the intended operating environment.

Common Mode Chokes Selection Notes

Select this component when dual-line noise attenuation is required at 5 mH inductance with a 1.85 A current capacity. Consider the vertical form factor for assembly constraints and verify that the unshielded design does not interfere with adjacent sensitive components. Ensure the operating temperature range aligns with the system's environmental conditions.

Common Mode Chokes Part Context

This part belongs to Pulse Electronics' PA3747 series of common mode chokes. The series offers various inductance values tailored for different power line filtering requirements. The PA3747.505NL specifically targets applications needing moderate inductance with higher current tolerance compared to lower-current variants in the same family.

Common Mode Chokes Replacement Considerations

Direct substitutes must match the 5 mH inductance, 1.85 A current rating, and through-hole package dimensions. Verify impedance characteristics and DC resistance limits to ensure equivalent noise suppression performance without exceeding thermal limits.
