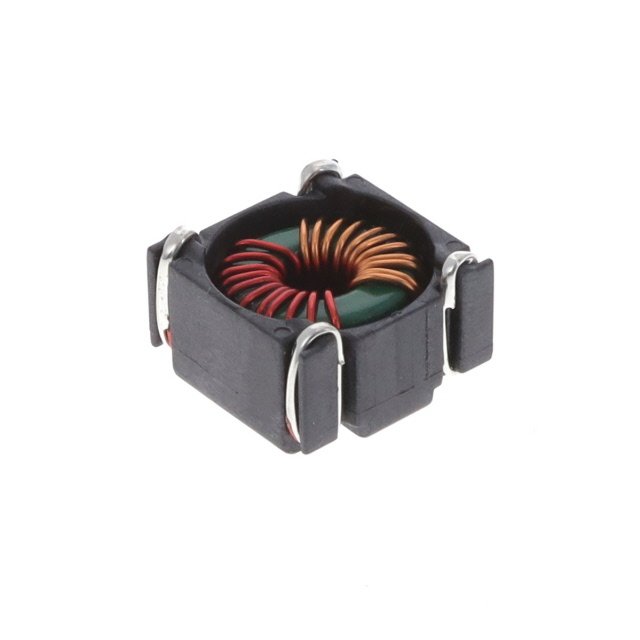

PA3927NLT is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 3A 2LN SMD AEC-Q200. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PA3927NLT
- Description：CMC 3A 2LN SMD AEC-Q200
- Series：-
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：3A
- DC Resistance (DCR) (Max)：27mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 120°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.512" L x 0.512" W (13.00mm x 13.00mm)
- Height (Max)：0.339" (8.60mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PA3927NLT
Common Mode Chokes Overview
The PA3927NLT is a surface-mount common mode choke manufactured by Pulse Electronics. It features an inductance of 800 µH and a rated current of 3 Arms. The component exhibits a maximum DC resistance of 0.027 ohms and an impedance of 1.3 kOhms. It operates within a temperature range of -40°C to +125°C and holds AEC-Q200 qualification. The physical dimensions are 13 mm x 13 mm x 8.6 mm.
Common Mode Chokes Feature Summary
- AEC-Q200 qualified for automotive reliability standards
- Surface mount design for automated PCB assembly
- High inductance value for effective noise suppression
Common Mode Chokes Applications
- Automotive electronic circuits requiring EMI filtering
- Power supply input stages for noise reduction
- Data line protection in vehicle infotainment systems
Common Mode Chokes Procurement Notes
Verify the specific datasheet revision with the manufacturer before finalizing designs, as specifications may be updated. Confirm that the AEC-Q200 certification status remains valid for the intended automotive application tier. Ensure the selected package variant matches the required reel or cut tape quantity for production integration.
Common Mode Chokes Selection Notes
Select this component when high inductance is required for low-frequency noise attenuation in compact spaces. The 3 Arms rating suits moderate current applications. Verify that the 1.3 kOhm impedance meets the target frequency rejection requirements. Ensure the 13x13 mm footprint fits the available PCB real estate constraints.
Common Mode Chokes Part Context
This part belongs to the CMTC product range from Pulse Electronics, designed specifically for common mode noise suppression. It serves as a passive filter component within the broader category of inductors and chokes. The series is engineered to meet stringent automotive quality standards while providing reliable performance in harsh environments.
Common Mode Chokes Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult the manufacturer for direct equivalents if this specific model is unavailable.
