PA4301.473NLT

$0.85

Description：FIXED IND 47UH 745MA 234MOHM SMD
Series：PA4301.XXXNLT
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:ff0644674483 Category: Fixed Inductors Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PA4301.473NLT is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is FIXED IND 47UH 745MA 234MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for PA4301.473NLT

Description：FIXED IND 47UH 745MA 234MOHM SMD
Series：PA4301.XXXNLT
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Drum Core, Wirewound
Material - Core：Ferrite
Inductance：47 µH
Tolerance：±20%
Current Rating (Amps)：745 mA
Current - Saturation (Isat)：-
Shielding：Shielded
DC Resistance (DCR)：234mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：1 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.283" L x 0.283" W (7.20mm x 7.20mm)
Height - Seated (Max)：0.118" (3.00mm)
Features：-

Fixed Inductors datasheet and documents for PA4301.473NLT

PA4301.473NLT

Fixed Inductors Overview

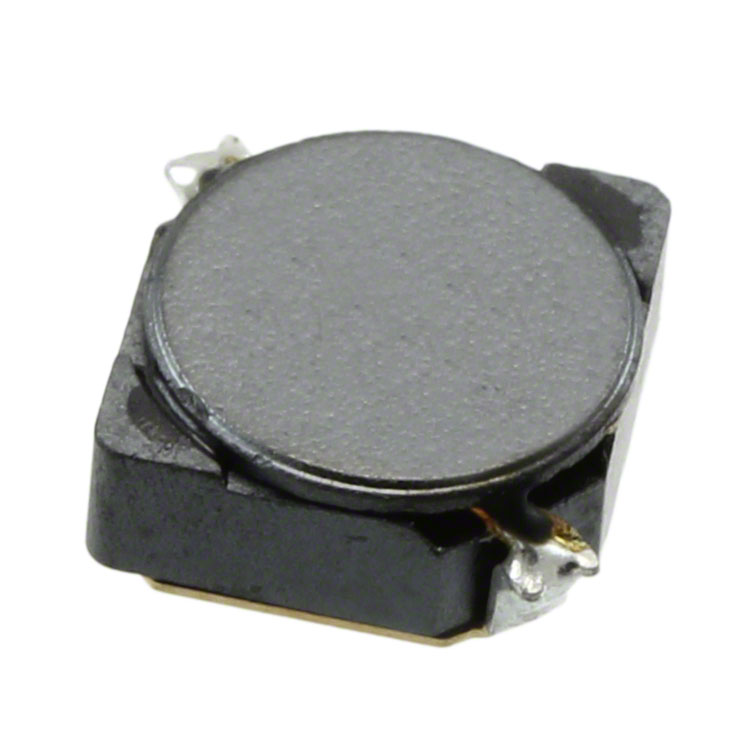

The PA4301.473NLT is a shielded surface-mount power inductor from Pulse Electronics, featuring a drum core and wirewound construction. It provides an inductance of 47 µH with a tolerance of ±20%. The component supports a maximum DC current of 745 mA and has a maximum DC resistance of 234 mOhms. Measuring 7.2 mm x 7.2 mm with a height of 3.0 mm, it operates within a temperature range of -40°C to +125°C.

Fixed Inductors Feature Summary

Shielded drum core design minimizes electromagnetic interference
Wirewound construction ensures stable performance
Low profile surface mount package facilitates automated assembly

Fixed Inductors Applications

RF circuit filtering
Power supply output chokes
DC-DC converter energy storage

Fixed Inductors Procurement Notes

Verify the manufacturer part number against official Pulse Electronics documentation to ensure authenticity. Confirm that the specific ordering suffix matches the required electrical parameters and packaging format. Check for RoHS compliance status relevant to your region's regulations before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when a compact shielded inductor is required for moderate current applications. Ensure the 745 mA current rating meets the peak load requirements of the target circuit. Verify that the 7.2 mm footprint fits within the available PCB area constraints.

Fixed Inductors Part Context

This component belongs to the PA4301 series of shielded power inductors. It shares physical dimensions with the PA4300 series but offers distinct electrical characteristics tailored for specific power management needs within the same low-profile form factor family.
