PA4308.474NLT

Fixed Inductors Overview

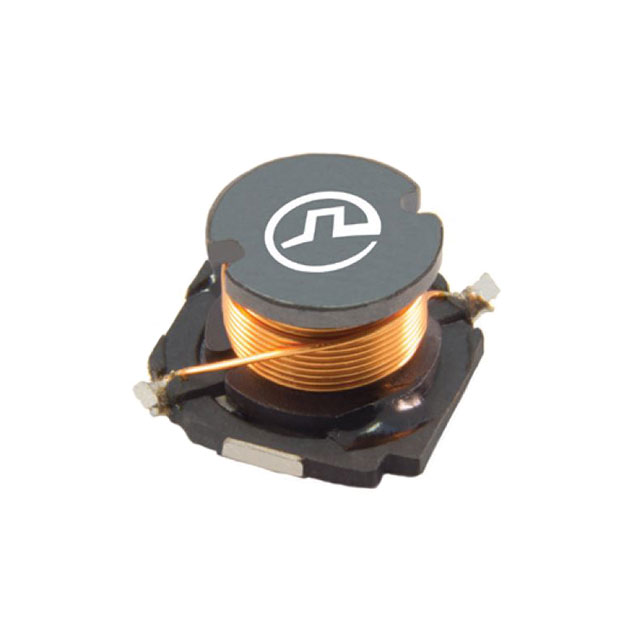

The PA4308.474NLT is a fixed wirewound inductor manufactured by Pulse Electronics, designed for surface-mount applications. It features an unshielded construction with a nominal inductance of 470 µH and a tolerance of ±20%. The component supports a maximum DC current rating of 570 mA and exhibits a maximum DC resistance of 5.61 Ohms. Measured at a test frequency of 100 kHz, it operates within a temperature range of -40°C to +125°C. The physical dimensions are non-standard, typically adhering to the PA4308 series footprint specifications.

Fixed Inductors Feature Summary

• Unshielded wirewound design suitable for general power filtering
• Surface-mount installation for automated PCB assembly
• High-temperature operation capability up to 125°C

Fixed Inductors Applications

• General purpose power supply filtering
• DC-DC converter input or output stages
• Signal conditioning circuits requiring high inductance

Fixed Inductors Procurement Notes

Verify the specific package dimensions against your PCB footprint, as the datasheet classifies the case as non-standard. Confirm that the 570 mA current rating meets your circuit's peak load requirements. Ensure compatibility with standard reflow soldering profiles for lead-free assemblies. Check for RoHS compliance status prior to final procurement approval.

Fixed Inductors Selection Notes

Select this component when a high inductance value is required in a compact surface-mount form factor. The unshielded nature may necessitate careful layout planning to minimize electromagnetic interference coupling with nearby traces. Consider the higher DC resistance impact on efficiency if low-loss performance is critical for the application.

Fixed Inductors Part Context

This part belongs to the PA4308 series of fixed inductors from Pulse Electronics. The series offers various inductance values tailored for different power management needs. The PA4308.474NLT specifically targets applications needing significant inductance in a small outline package, distinguishing it from shielded alternatives in the same family.

Fixed Inductors Replacement Considerations

Direct substitutes include other PA4308 series variants with similar electrical characteristics. Verify cross-compatibility with equivalent parts from manufacturers such as Bourns or Coilcraft, ensuring matching inductance, current ratings, and physical dimensions.
